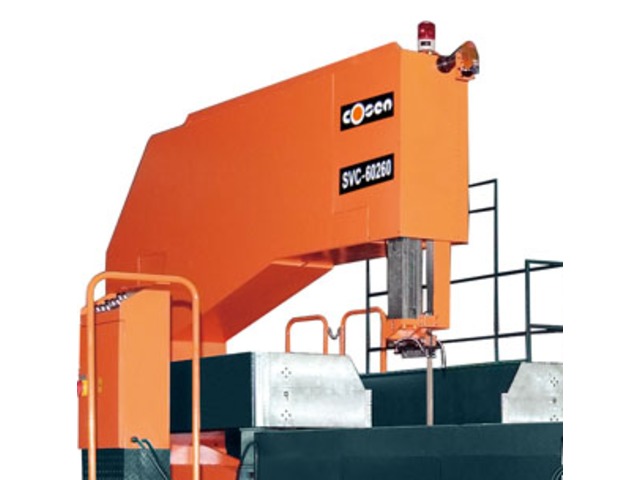

Traversing Head Cross Cutting Plate Saws : SVC-60260 COSEN EMEA

Traversing Head Cross Cutting Plate Saws : SVC-60260

Vertical band saw

Vote

Ask for a quote Receive Documentation Contact the supplier

Saw frame travel is done by using an AC servo motor coupled with ball screw. This system offers high smooth, pulse free feeding speed.

● 10 hp motor ● 54mm (2.1”s) blade ● inverter-controlled blade speed ● high precision worm gearbox ● positive feed saw frame with variable feed rate & pressure control valve ● high strength saw frame traveling on linear guides ● hydraulic powered wire brush system with adjustable speed ● sturdily built fixed work bed ● hydraulic powered guide arm ● independent control panel

Capacity Height : 600 mm (24 Capacity Throat : 2600 mm (102 Blade Speed : 20-80 m/min (65-262 ft/min) Blade Size (LxWxT) : 10680x54x1.6 (420.5 Blade Motor : 10HP (7.5kW) Hydraulic Motor : 2HP (1.5kW) Coolant Motor : 1/2HP (0.375kW) Workbed Height : 1620 mm (63.8 Gross Weight : 18000 kgs (39600 lbs) Floor Space (WxH) : 8200x2400x3900 mm (322.8
