TS2-100 SCARA robot

SCARA robot

Ask for a quote Receive Documentation Contact the supplier


Stäubli is entering a new performance class with its TS2 SCARA series. The completely redesigned 4-axis machine with proprietary JCS drive technology facilitates ultra-short cycle times and high repeatability. It also has a revolutionary hygienic design which opens up new possibilities for use in sensitive environments. It is piloted by the generic CS9 controller that also controls TX2 6-axis robots.

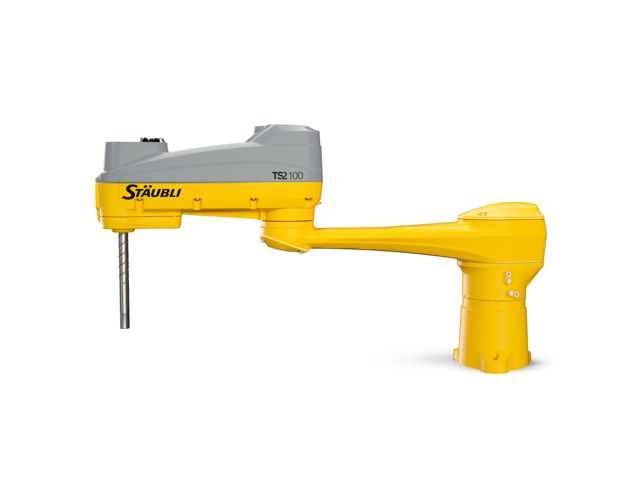

The fast and compact TS2-100 robot has special features, such as a maximum payload of 8.4 kg with a 1000 mm reach.

DESIGN, PERFORMANCE AND CONNECTIVITY REDEFINED

Smart design
  • Hygienic encapsulated 4-axis arm enabled by hollow shaft drives, no external cables
  • Compatible with all environments
  • Protection and additional installation options available
  • IP65 for the entire arm with optional ball screw cover and bellows

Integration flexibility, modular and scalable
  • Unique cylindrical envelope and small footprint

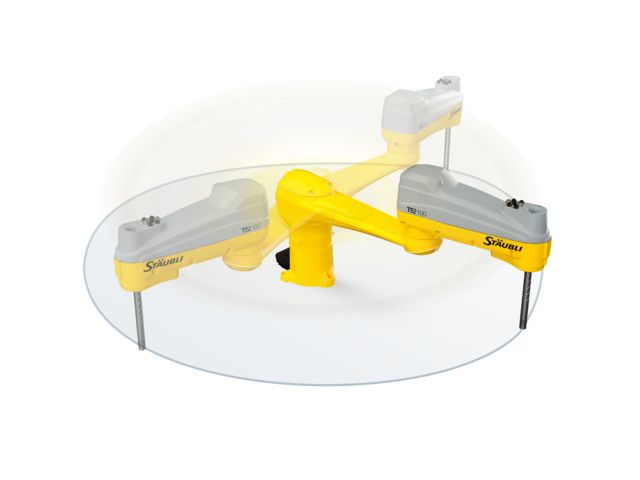

  • Axis 1 working range: ± 180°
  • Floor and ceiling mounting possibility for flexible and scalable integration

High performance kinematics
  • Over 125 years of experience in fast moving technology
  • Light and rigid structure
  • Patented JCS smart gearbox specially designed for compact robots
  • Compatible with NSF H1 food oil with no loss in performance

Degrees of freedom: 4 Load capacity: 8.4 kg Reach: 1000 mm Protection class IP65 with ball screw cover and bellows Attachment methods: Floor or ceilling Stäubli CS9 controller
Download the complete technical features

Stäubli CS9 controller
