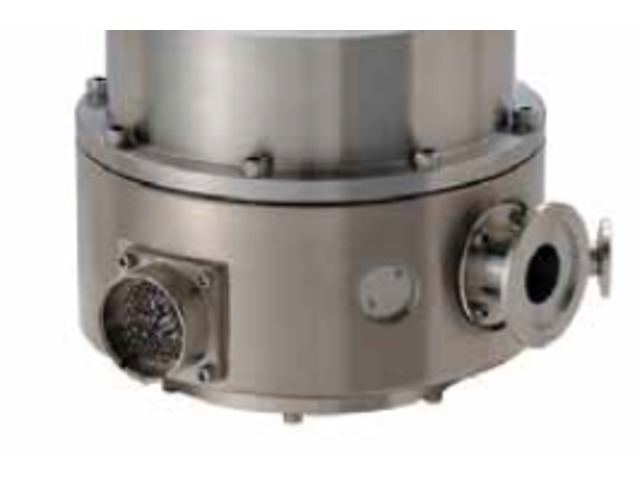

Turbomolecular pump : STPH451C ISO160K Inlet EDWARDS SAS

Turbomolecular pump : STPH451C ISO160K Inlet

Vacuum pump

Vote

Ask for a quote Receive Documentation Contact the supplier

Edwards high performance STPH451C turbomolecular pump has been designed for use in the harshest of semiconductor applications.

The pumps field proven reliability and class-leading performance give maximum process flexibility. The STPH451C has been approved for use by major equipment manufacturers in the semiconductor and magnetic media industries.

Inlet flange : ISO160K Outlet port : KF40 Purge port : KF10 Water cooling fitting : PT1/4 Max Nitrogen throughput : 2500 sccm Rated speed : 48000 rpm Starting time : 4 min Maximum inlet flange temperature : 120 °C Power consumption : 0.6 kVA Pump weight : 15 kg
Download the complete technical features
