Universal Milling Machine - VHF 3

Milling cutters

Vote

Ask for a quote

Presentation

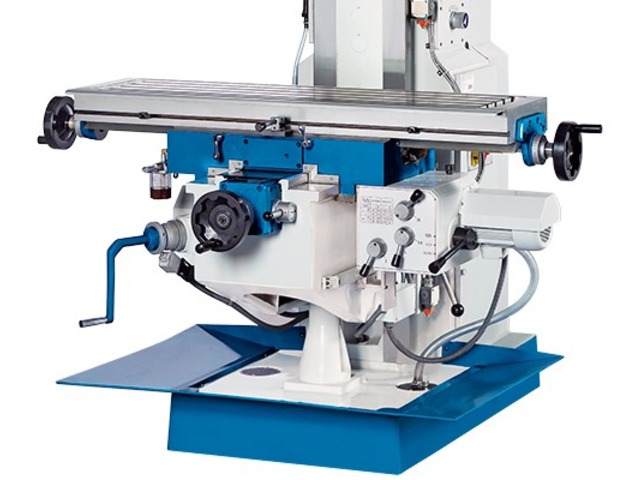

all 3 axes with automatic feed and rapid feeds

vertical head swivels ± 45°
spindle speeds for horizontal and vertical spindle controlled by separate switch gears with oil-bath lubrication
capstan-controlled quill feed for drilling, manual micro-feed for milling
3 automatic quill feeds
for horizontal spindle operations, the top beam including head can be completely rotated on the stand
adjustable ground dovetail guideways on the X-axis and wide square guideways on Y and Z-axis
clamping device in all 3 axes
adjustable stops for drilling depth and table adjustment

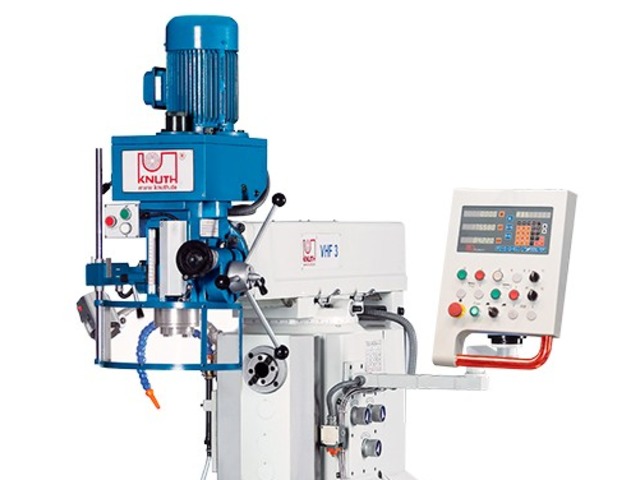

3-axis position indicator

more accuracy
lower error rate
increased productivity
resulting in valuable time savings
for increased productivity
easy to read display
operator-specific features
convenient keyboard layout
resolution: 0.01/ 0.005 mm
default coordinates
axis position is maintained when display is turned off
hole circle pattern calculation
calculator function
storage for 10 tools
radius / diameter toggle
mm/inch conversion
easy expansion and maintenance-free operation

Technical features

Table set up area : 1.320x320 mm Spindle mount : ISO 40 Quill stroke : 120 mm Feed speed X-axis : (8) 20 - 360 mm/min Rapid feed X-axis : 1.024 mm/min Spindle mount : ISO 40
