Vacuum chamber | VC P400X400 HV

Specially developed for use under high vacuum, our vacuum chamber VC P400x400 HV is made of a unique, flexible chamber system based on extruded aluminium profiles. The three-metre long profiles are cut to the required length and fitted with a screwed rear wall, as well as a door. Unlike our standard VC P400x400, the VC P 400x400 HV has no slots in the side walls.

This system has great benefits:

✓ Flexible length of max. 3 meters
✓ Very fast delivery because only door and back wall must be supplemented
✓ Low-cost
✓ Low-weight
✓ Low desorption of the aluminium, therefore also suitable for high vacuum
✓ Colour of your choice possible by anodising
✓ Highly clean processes possible, e.g. in the semiconductor field
✓ Easy operation
✓ No welding required, parts can be easily attached
✓ Easy attachment to the existing division bars

Vacuum chamber specifications

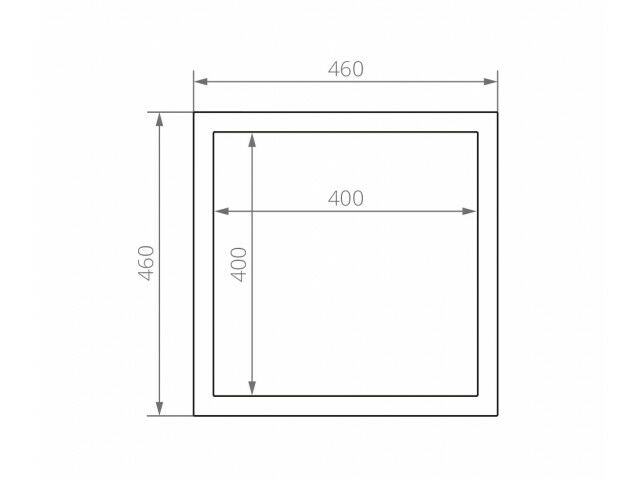

Internal dimensions
Length: up to 3000 mm (standard: 625 mm)
Width: 400 mm
Height: 400 mm

Volume
approx. 100 liters

Connections
1 x KF 16
6 x KF 40
Additional flanges possible in any position

Door
Hinged door with sight glass
