“ Ideal for quick tests at the edge of the production line, it has convinced major manufacturers in the food and cosmetics industries. ”
Ask for a quoteReceive DocumentationContact the supplier

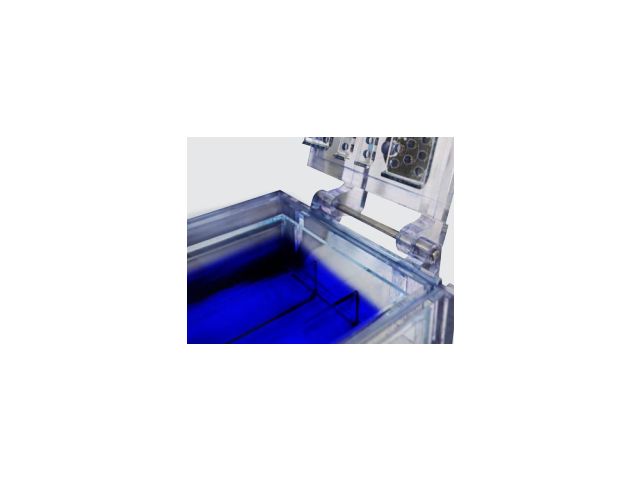

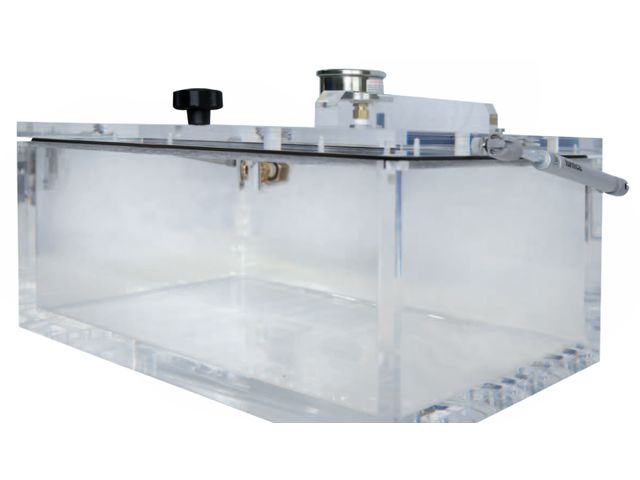

The CTS is a fully pneumatic vacuum chamber which allows, by vacuum, in the same way as the CTE, to test the dry tightness of industrial packaging such as bottles, flasks, vials, and in immersion for packaging such as food trays, bags, sealed packaging such as potato chips, yoghurt, blister packs, etc.

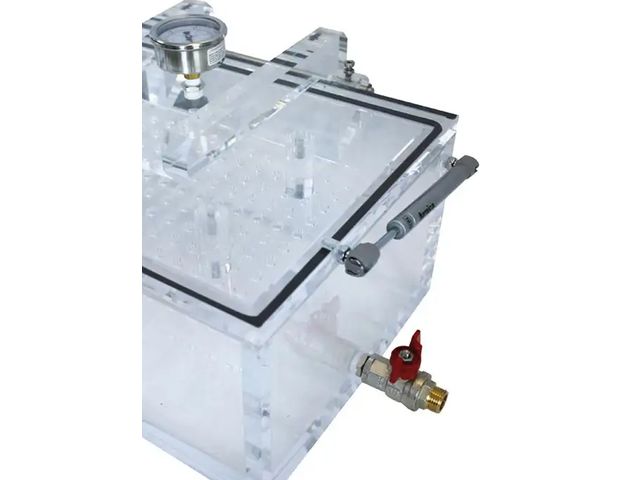

Adapted to production environments, it has a fully pneumatic system, called venturi, capable of creating a vacuum (max -850 mbar) when supplied with compressed air with a minimum of 6 bars. It is connected to your network by 8 mm RISLAN pipes. Moreover, it includes a compressed air control valve to limit the incoming flow, and thus to vary the vacuum approximately, the value of which appears on a needle pressure gauge. Different standard sizes in door or cover opening (see price list and options)
Standards : ASTM D4991, ASTM D5094, ASTM D4169, EN 14401, DIN55528 (Part 1, 2, 3, 4, 5)Safety pneumatic cylinder fixed on the cover of the box.Immersion with waterproof tank, integral or removable presser.Vacuum type, pneumaticApplications for bottles, for packaging, for containers
