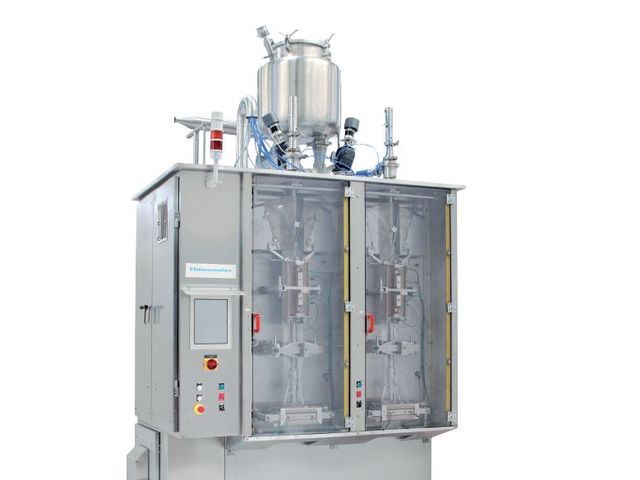

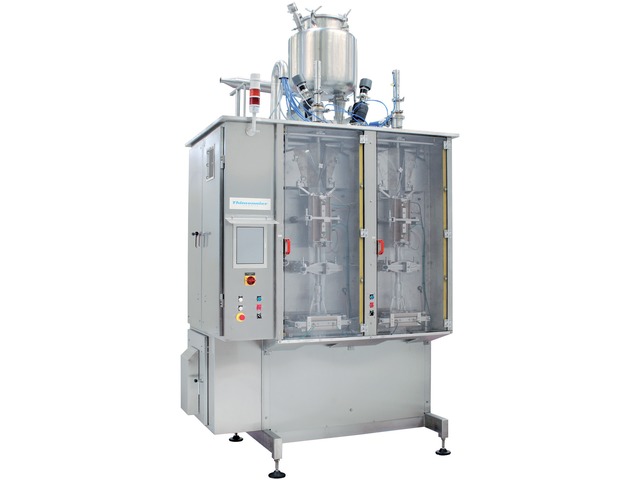

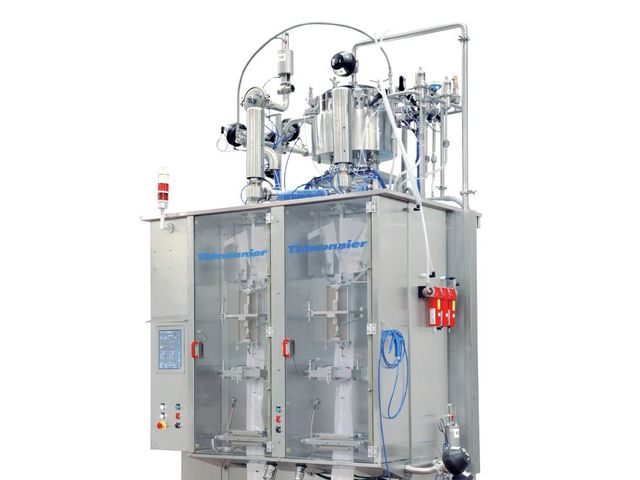

VERTICAL AUTOMATIC DOUBLE HEAD FILLING MACHINE :
THE M5200 is perfect for forming, filling and sealing pillow pouches using rolls of polyethylene.
The pouches are continuously fi lled from a bu er tank that is under constant level and controlled by a proportional valve and a level sensor.
The M5200 employs brushless electronic controls for greater fl exibility of use and high precision dosage at high speeds.
The M5200 is built in accordance with standard 3A and complies with USPHS and FDA specifi cations and the recommendations of the EHEDG.
Its frame is built with steel covered with stainless steel to ensure its fi rmness and longevity. All of the parts that come into contact with the product are built from AISI 316L stainless steel.
A Clean-in-Place (CIP) has been integrated into the M5200’s design.
STANDARD EQUIPMENT :
- Pouches disinfected in germicidal UV tubes before being shaped
- Clean in Place (CIP)
- The M5200’s automated controls are located in a separate air-tight
cabinet with a control touch screen.
- Alarm messages displayed on control screen: end of reel,
low level in bu er tank, access doors open…
OPTIONS
Coding device / 3 coding types are available:
- Pressure stamp on the longitudinal seal
- Programmable thermal transfer
- Ink jet
Pump dosage for thicker products (helicoidal pump, lobular pump)
Exit conveyor
Automatic packer: the M 5200 comes with an optional automatic
pouch packing system with a counter.
E.S.L. Option (Extended Shelf Life):
Steril airfl ow and sterilization of the piping
RAS connection via modem
Reel replacement without stopping the machine
Compatible with UL / CSA standards
Film thickness: 50 - 120 micronsPouch sizes: Adjustable length of 40 - 290 mmPower supply: 400 V Tri. + N - 50 HzCompressed air supply: Input pressure = 7 - 9 bar - Effective pressure = 6 bar Output: Q = 1 Nm³/hCooling water supply: Inlet pressure: 1 - 6 kg/cm² - Q = 150 litres/h Temp.= 20°C - 30°C Free returnRATE OF PRODUCTION: 5 000 - 10 000 PPHBAG VOLUME: 70 - 1 500 ML
