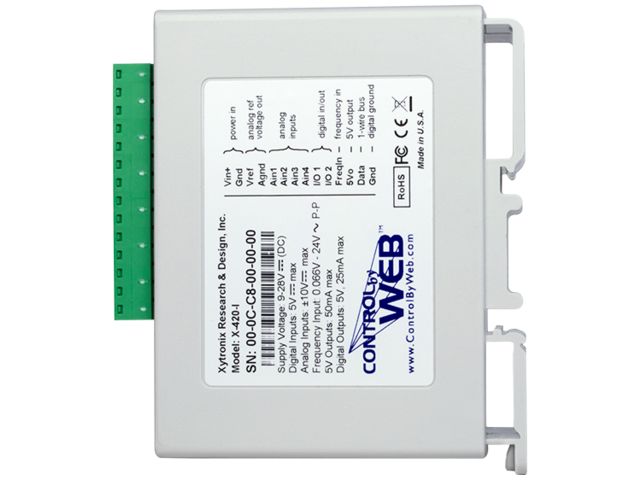

X-420-I

Vote

“ 2 inputs / outputs 0-5 Vdc 4 analog inputs ± 1.28V, ± 2.56V, ± 5.12V, ± 10.24V, 4-20mA Up to 16 1-Wire sensors Embedded web server, email alarms Power input: 9-28 Vdc or PoE ”

Ask for a quote

Presentation

Unlimited Possibilities for Industrial Internet of Things The X-420™ is a fully-featured, Ethernet I/O monitoring and data acquisition module with an innovative solution for creating advance logic (tasks) without the need for scripting.
Monitor and log up to 100 inputs and/or outputs from up to 32 remote I/O modules using the X-420's intuitive web interface. Push sensor data to other ControlByWeb modules.
No software required, no programming necessary, and no subscription to buy.
Built-In Web Server The X-420 has a built-in web server so it can be set up, controlled, and monitored using a standard web browser (or by using our CBW Mobile smartphone app).

Technical features

Four analog inputs: ±1.28V, ±2.56V, ±5.12V, ±10.24V, 4-20mA, 4-20mA Two configurable digital inputs/outputs 0-5VDC 1-Wire Bus for up to 16 sensors (temperature, humidity, ultrasonic sensors, etc.) One AC coupled frequency input Control, monitor, and log 32 remote modules, or up to 100 I/O User Permissions: Admin, Manager, User Tasks: 50 Scheduled, 50 Conditional, 20 Override Schedules Real-Time Clock with NTP server synchronization Automatic daylight savings and leap year adjustment BASIC script support for advanced flexibility

Download the complete technical features

Usage scope

Industry IoT Smart Building
