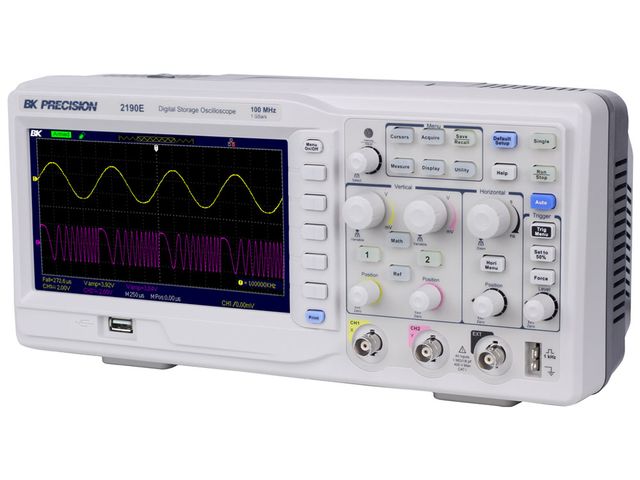

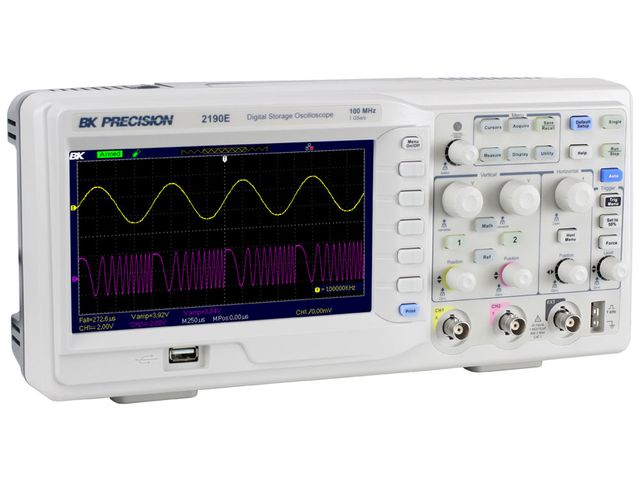

The 2190E oscilloscope combines performance and value all in one portable solution. With advanced triggering capabilities, long waveform memory up to 40,000 points, and extensive features such as pass/fail limit testing, digital filtering, waveform recorder, and 32 automatic measurements, this oscilloscope offers powerful tools in a small affordable package.
-
100 MHz bandwidth, 1 GSa/s sample rate
-
Large, 7” widescreen color display with 800 x 480 resolution offers a significantly larger viewing area than typical economy oscilloscopes (5.7”)
-
32 automatic measurements
-
FFT plus four additional math functions
-
Versatile triggering capabilities including pulse width, line-selectable video, slope, and alternating trigger
-
Advanced tools include digital filter with adjustable limits, pass/fail testing, and waveform recorder mode
-
12 different language user interfaces and context sensitive help
-
Special EDU mode allows educators to disable Auto set button, Measure menu, and Cursors menu
-
PC software that lets you remotely control the digital storage oscilloscope and capture, save, and analyze waveform data
-
Front panel USB host port for saving and recalling waveform setups, data, and screen shots from the oscilloscope on to a USB flash drive
-

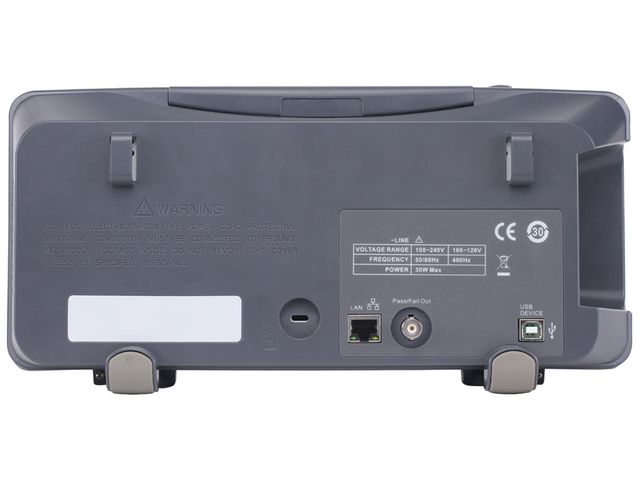

LAN and USBTMC compliant USB device port supporting SCPI commands for remote PC control
-
GPIB connectivity with optional USB-to-GPIB adapter (model AK40G)
