3D Printer - Connex 3 Objet500

3D printer

Vote

Ask for a quote

Presentation

The Objet500 and Objet350 Connex3 bring agility and aesthetics to every stage of your product development and production. The Connex3 system was the first 3D printer in the world to simultaneously 3D print multiple colors and materials. It continues to lead the field with an even broader range of printing capabilities so you can create parts with the precision, look and feel of real production parts. Connex3 delivers incredible efficiency with the power to serve your diverse needs with one system.

Multiple materials can be loaded at one time in the Connex3, enabling you to print parts that require a range of mechanical, optical or thermal properties like non-slip grips, transparent windows or flexible hinges.

Fast, flexible colors can be printed directly from the color information in your original CAD file. Produce smooth three-color gradients, vivid multi-color textures, sleek transparencies or milky opaque colors.

No assembly required for parts 3D printed with multiple materials, so you can create custom jigs, assembly fixtures and tools with ultra-fine accuracy and smooth surfaces.

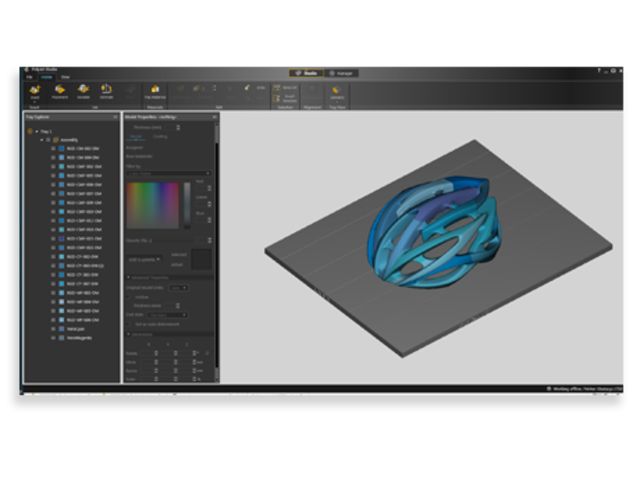

The user-friendly GrabCAD Print software makes it simple for anyone to build high-quality accurate 3D models with the Connex3 systems.

Technical features

System Size and Weight 1400 x 1260 x 1100 mm (55.1 x 49.6 x 43.4 in.); 430 kg (948 lbs.) Material Cabinet: 330 x 1170 x 640 mm (13 x 46.1 x 26.2 in.); 76 kg (168 lbs.) Build Size : Objet500: 490 x 390 x 200 mm (19.3 x 15.4 x 7.9 in.) Layer Thickness Horizontal build layers as fine as 16 microns (.0006 in.) Accuracy Up to 200 microns for full model size (for rigid materials only, depending on geometry, build parameters and model orientation) Build Resolution X-axis: 600 dpi; Y-axis: 600 dpi; Z-axis: 1600 dpi Software : GrabCAD Print

Opinion on the product
