3D Printer Objet Eden260VS

3D printer

Vote

Ask for a quote

Presentation

Create prototypes that embody your product vision down to the finest detail, with a 3D printer the size of your average document printer. The models and prototypes created with the Eden260VS are cured with a UV light, and the non-toxic support materials are removed automatically—handle and use them immediately, no additional post-curing required.

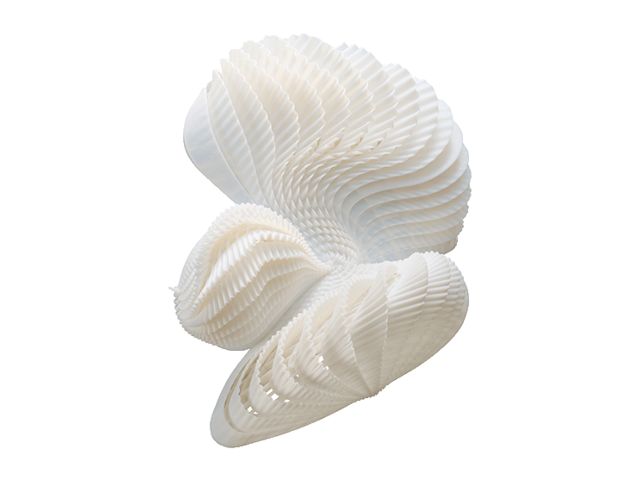

With 16-micron layer accuracy, the Eden260VS renders smooth surfaces, fine precision and diverse material properties for your models and prototypes.

15 distinct 3D printing materials are available with the Eden260VS, including the Vero family for multiple color options, the Tango family for flexible or soft-touch components and the Simulated Polypropylene family.

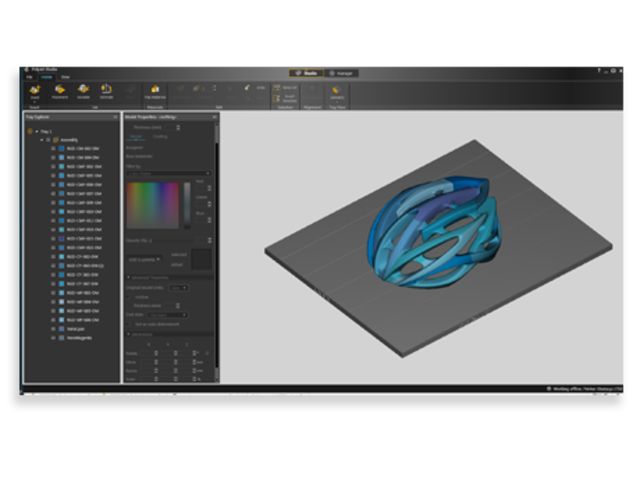

Intuitive 3D printing software application Objet Studio is included with the Eden260VS, making it easy for anyone to choose materials, optimize the build and manage print queues.

Materials Based on PolyJet technology, the Eden260VS enables you to create prototypes and models in 15 distinct 3D materials, including rigid opaque materials, simulated polypropylene materials, and high-temperature materials, perfect for advanced functional testing.

Technical features

System Size and Weight 87 x 120 x 73.5 cm (34.2 x 47.2 x 29 in.); 254 kg (559 lbs.) Build Size 255 x 252 x 200 mm (10.0 x 9.9 x 7.9 in.) Layer Thickness Horizontal build layers as fine as 16 microns (.0006 in.) Accuracy 20-85 microns for features below 50 mm; up to 200 microns for full model size Build Resolution X-axis: 600 dpi; Y-axis: 600 dpi; Z-axis: 1600 dpi
