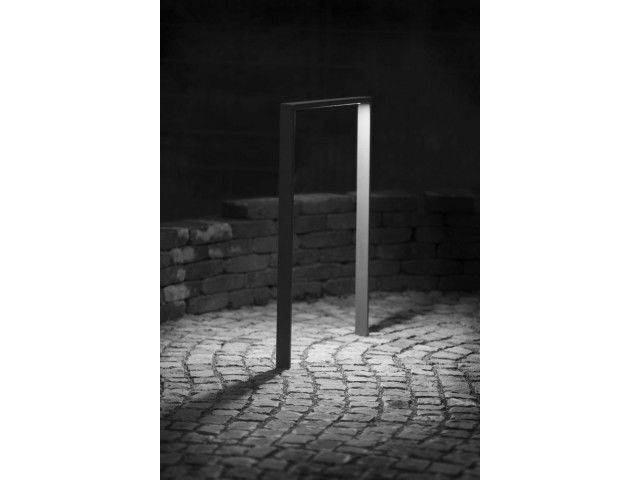

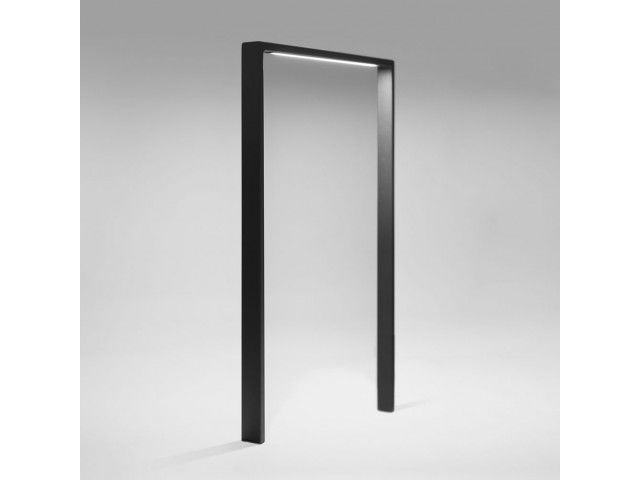

ABES Bicycle Stand 453 (LED)

Cycle stand

Vote

Ask for a quote

Presentation

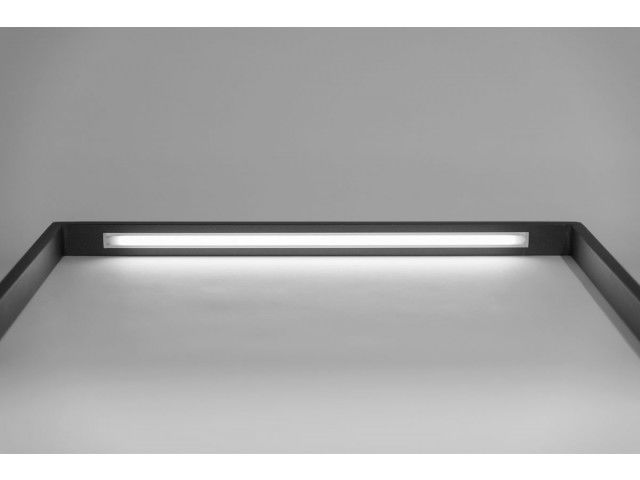

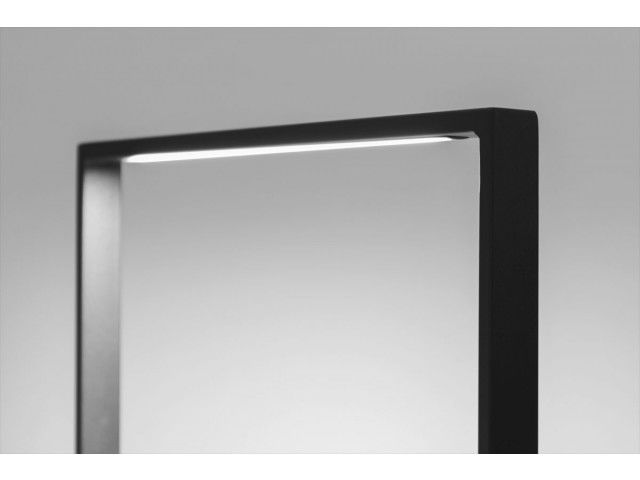

U-rack made from perpendicular steel profiles with an integrated LED bar unterneath the crossbar. Other dimensions are available upon request. Mounting Concrete embedment or removable with ground shells or screw-on. Finish – Stainless steel 1.4301 pickled and smoothed, electropolished (high-gloss) – surcharge. – Hot-dip galvanised steel ST37, additionally with powder coating in standard RAL colours or DB 703. Overview: Bicycle Stand, stainless steel, galvanised steel or powder coated – Height above ground: 860 mm – Full height: 1210 mm – Width: 820 mm – LED-bar (approx. 24,5 x 770 mm) – Power supply: 24 V DC – Power input: approx. 6,7 W – Luminous flux: approx. 560 lm – Reflected beam angle: 120° – Light colour: 4000 K – Light transmission: CRI >80 – Protection type: IP 67 – Connection cable: approx. 1 m with IP 67 plug The Connection, including all technical requirements, is delivered by the client and is not included in this package.

Technical features

Mounting: Fixed mounted, screw fixing, removable with ground shells Material: steel, stainless steel Options and accessories: integrated LED Market: for public spaces

Download the complete technical features
