Absolute and gauge pressure | Cerabar PMC71 Endress+Hauser France

Absolute and gauge pressure | Cerabar PMC71

Membrane pressure sensor

Vote

Go to the supplier’s website Receive Documentation Ask for a quote

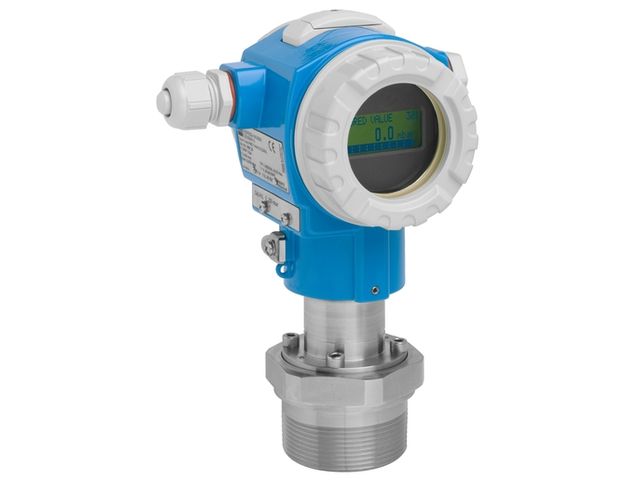

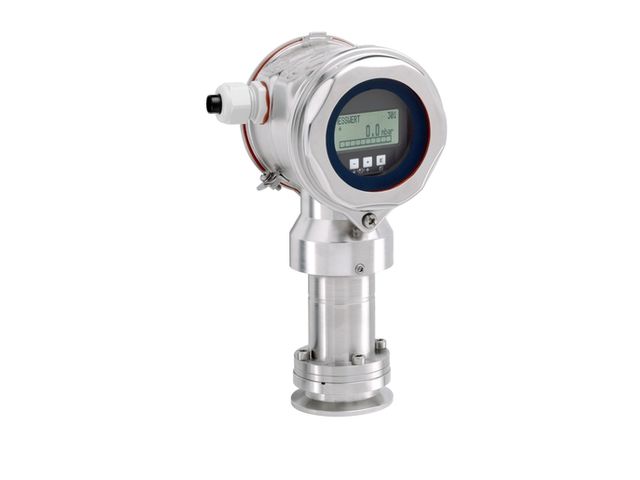

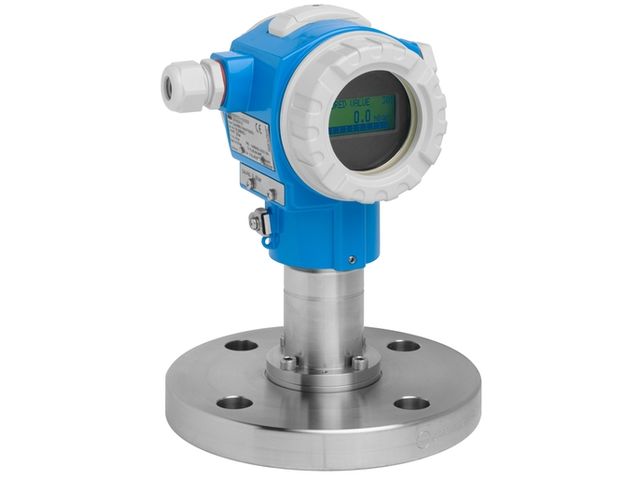

Digital pressure transmitter with oil-free ceramic sensor for measurement in gases or liquids.

The Cerabar PMC71 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in the process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection.

Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2/3 according to IEC 61508.

Digital pressure transmitter with oil-free ceramic sensor Accuracy Standard: 0.05% Platinum: up to 0.025% Process temperature -40°C...150°C (-40°F...302°F) Pressure measuring range 100mbar...40bar (1.5psi...600psi) Process pressure absolute / max. overpressure limit 60bar (900psi) Main wetted parts Ceraphire ceramic Alloy C 316L Monel PVDF HistoROM data management concept Easy menu-guided commissioning Process safety through membrane breakage detection
Download the complete technical features
