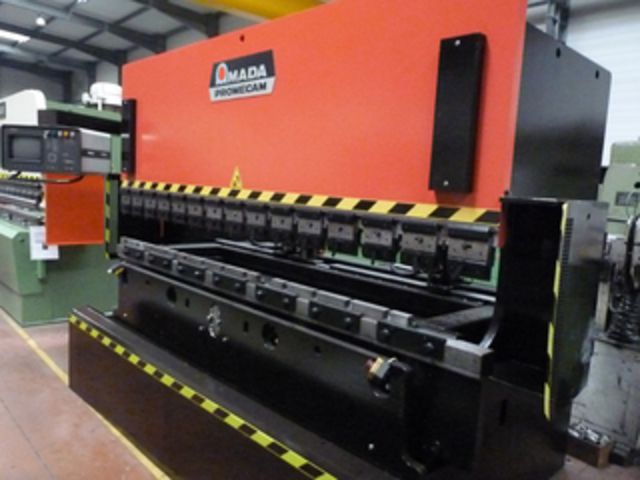

AMADA CNC Press Brake - Type : ITPS 103

Ask for a quote

Presentation

• Strength : 100 T.
• Maximum length : 3000 mm.
• Digital control : DELEM DA 58.
• Number of axes : 3.
• Distance between uprights : 2600 mm.
• Depth of the gooseneck : 400 mm.
• Stroke : 105 mm.
• Approach speed : 85 mm / s.
• Working speed : 10 mm / s.
• Ascent rate : 80 mm / s.
• Distance between the table and the slide: 370 mm.
• Hydraulic control.
• Motor : 9 kw.
• Approximate weight : 6580 kg.
• Overall dimensions : 3500x1930x2300 mm.

Summary

- X-Y-R digitized axes
