Analog angle sensors | AS40 – AS58

Potentiometer sensor

Vote

“ - Wide measuring range - High resistance to shocks and vibrations - Excellent temperature resistance ”

Ask for a quote

Presentation

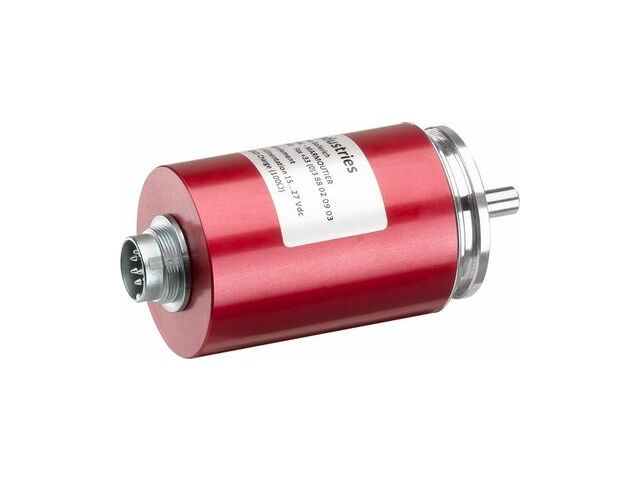

AS40 - 90°/180°/340°/1080°/1800°/3600°
Ø40 Body / Ø6 Solid shaft :

Output signal :
    Potentiometric 1kΩ

    0…10V
    4…20mA (current loop transmitter)
    4…20mA (current generator)
    0…20mA (current generator)

Resolution :
Quasi infinite (depends on the measuring system)

Standard linearity :
+/- 0.15% (others on demand)

Shock resistance :
≤ 300m/s² (11 ms)

Vibration resistance :
≤ 100m/s² (100…500 Hz)

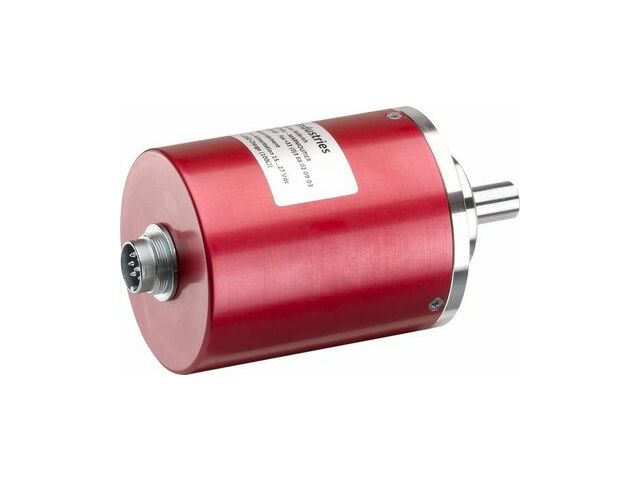

AS58 - 90°/180°/340°/1080°/1800°/3600°
Ø58 Body / Ø10 Solid shaft:

Output signal:

    Potentiometric 1kΩ
    0…10V
    4…20mA (current loop transmitter)
    4…20mA (current generator)
    0…20mA (current generator)

Resolution :
Quasi infinite (depends on the measuring system)

Standard linearity :
+/- 0.15% (others on demand)

Shock resistance :
≤ 300m/s² (11 ms)

Vibration resistance :
≤ 100m/s² (100…500 Hz)
