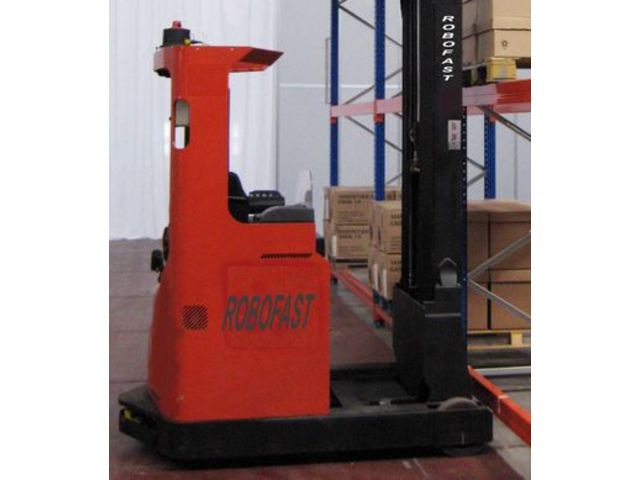

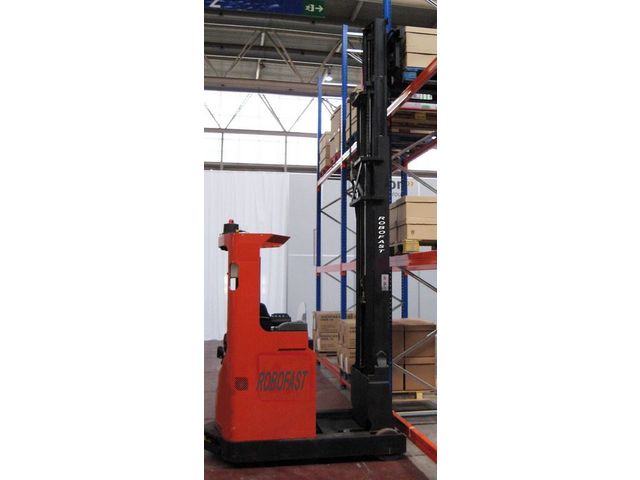

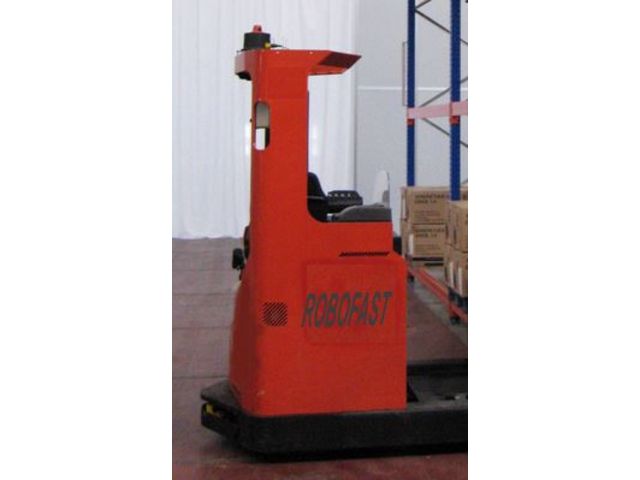

Automatic and Manual Stacker with Retractable Mast

Automatic guided vehicles (AGV)

Vote

“ - Long life span (more than 15 years) - Low maintenance cost - Equipped with real-time diagnostic tools - Automatic recharge without need for traditional battery - Size and performance features fully customizable - Can be fitted with a wide range of equipment: hook, lifting table, conveyor etc. ”

Ask for a quote

Presentation

The Automatic and Manual Stacker with Retractable Mast has been designed to transport loads on long circuits and narrow corridors at high and / or continuous pace. It has a loading capacity of up to 2.5 tons and an elevation range of 12 meters. It is also very versatile and can be operated both in indoor and outdoor environments including deep-freeze zone as well as on metallic, asphalt, tiled or carpeted soils.

This automatic stacker has been developed from an electric stacker produced by a recognized manufacturer. It is equipped with the latest technologies and has been automated without core modification using Axter’s compact and effective electronic systems. It can be adapted to our Odoguidance and Wallguidance systems.

The controlling system is highly scalable and allows efficient communication with various stakeholders such as palletizing robots or a GPAO secured by wireless links.

Technical features

Electronic shield Side and back safety Height lifting and dimensions fully customizable Automatic recharge Lifting capacity up to 2500 kg Height lifting capacity up to 12.6m

Usage scope

Management of loads flow from workstations to warehouses Supply of packaging items, components and raw materials Load transfers between workstations, conveyors or packaging machines Waste disposal of semi-finished or finished products from storage or shipping areas Order preparation
