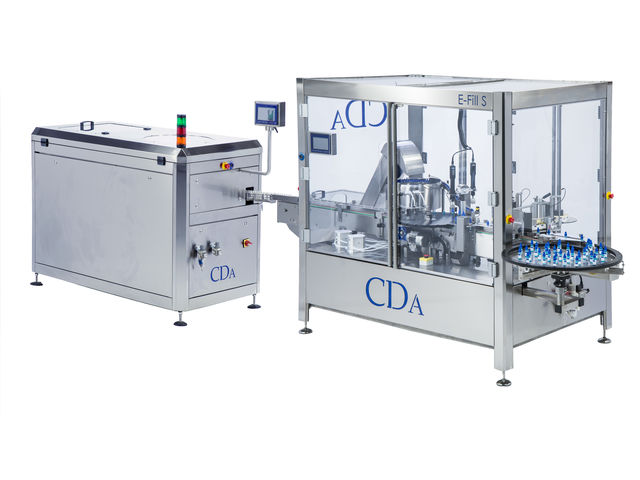

The "E-fill S", which is designed by CDA, is a complete automatic packing line. It is the latest generation of automatic filling - screw-capping - labelling machine by CDA.
Designed for small bottles from 5 to 30 ml, it is the ideal solution for automated packing of liquids.
It can reach a production rate of 3000 bottles/hour (i.e. 50 bottles/minute).
Depending on the options, the machine is equipped with:
- Dual peristaltic pump and two dosing needles
- 3-point labelling system with an accuracy of ±1 mm

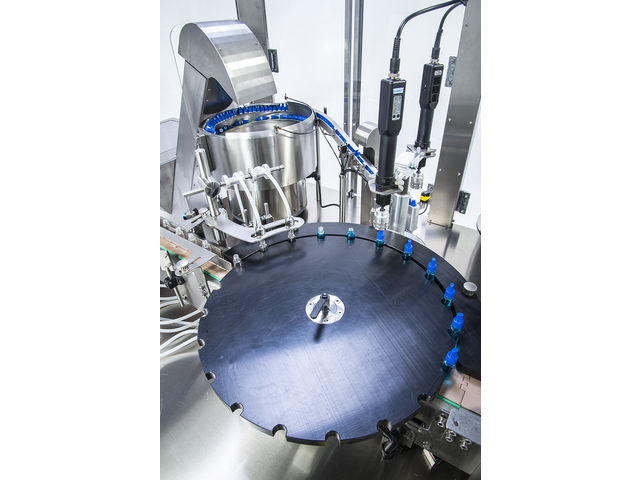

- Dual screw-capping machine integrated on pick & place system
- Automatic bottle and cap feed
- Automatic bottle unscrambler - 8-inch LCD touchscreen
- Acetal slat band chain feed conveyor
- Cap feed lifting plate

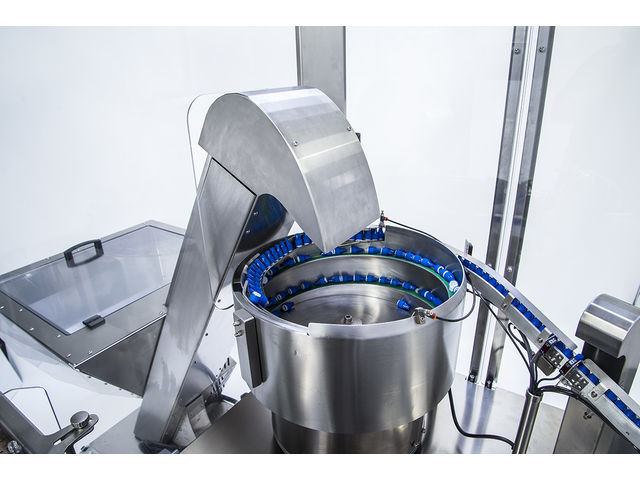

- Vibrating bowl feeder - Product transfer star wheel
- Stainless steel frame with polycarbonate casing - Receiving table, diameter 70 mm
Filling/Screw-Capping:
- Accuracy: +/- 0.5%
- Correction, suction, speed control, acceleration and deceleration function
- Vibrating bowl bottle cap feed system
- Electric cap screwing machine with adjustable tightening torque
Control:
- Keypad and 8-inch LCD screen
Labelling:
- Bottle formats: Cylindrical/ 5, 10, 15, 20 and 30 ml
- Up to 2 labelling heads
- Storage, bottle counter and timer recall functions
- Electrical labelling height adjustment controlled via touchscreen
E-liquids
Parapharmaceuticals
Essential oils
Food processing
