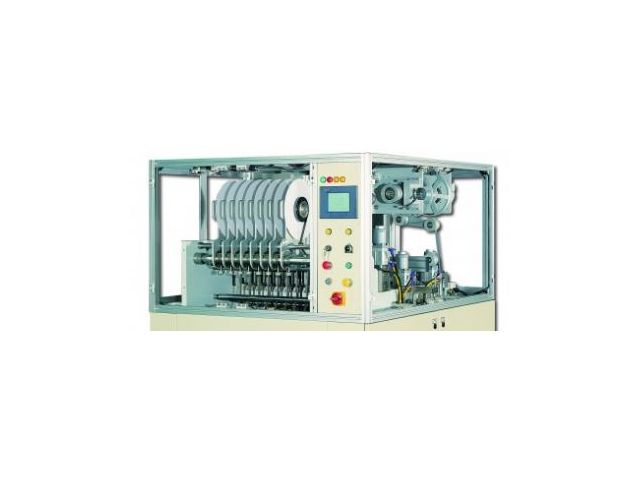

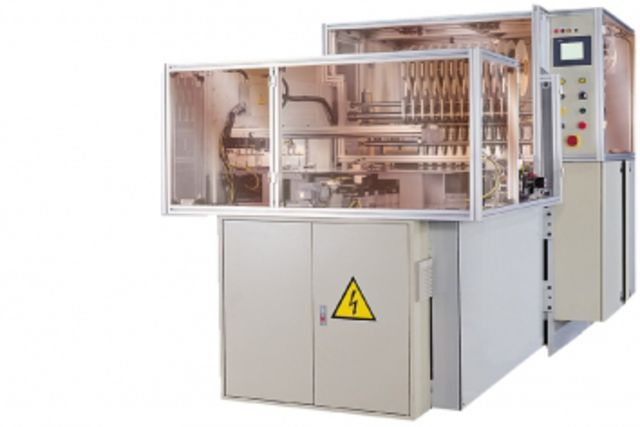

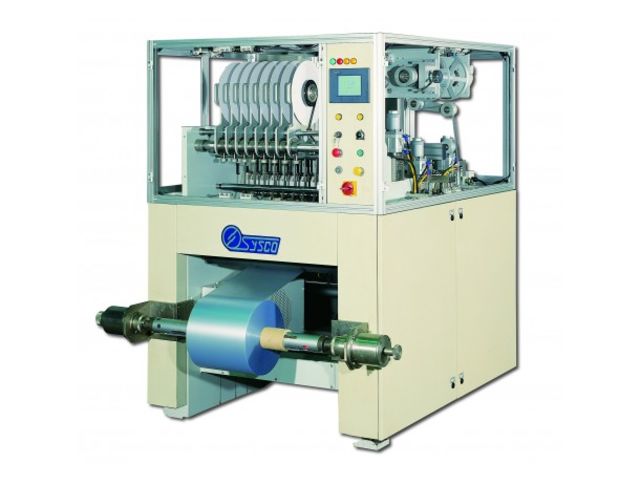

Automatic laying system for magstripe : SYSCO MTL-NS / NSA DOREY

Automatic laying system for magstripe : SYSCO MTL-NS / NSA

Plastic machining centre

Vote

Ask for a quote Receive Documentation Contact the supplier

Using the pressure and temperature, the magnetic tracks are applied to the sheet, while the protective film is removed and wound on a support.

• Number of tracks: August to October.
• Standard magnetic stripe width: 12.7 mm or 6.5 mm .
• Width overlay with or without hot melt: from 330 to 700 mm.
• Overlay thickness: 0.03 to 0.8 mm.
• Lateral alignment of tracks: ± 0.15 mm.
• Removing the roller tracks by independent heating up to 220 ° C.
• Adjustable speed of laying tracks up to 5 m / min.
• Manual loading of sheets.
• Side guides adjustable micrometer.

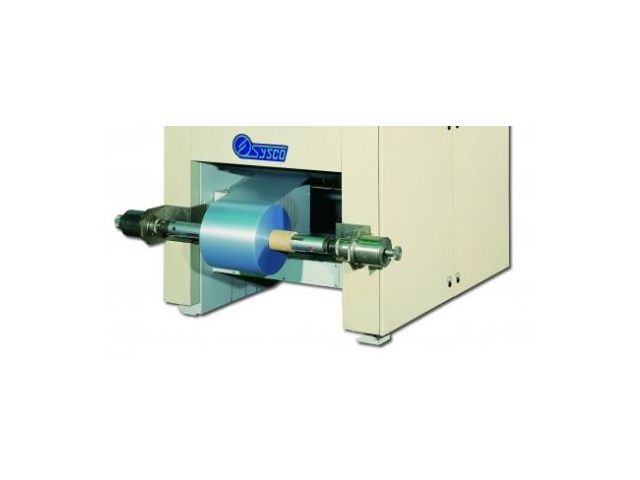

• Winding device holder with the magnetic track detection cell in case of breakage.
• Mounting Tape with voltage control, and adjustable positioning guides the rollers.
• Positioning + or - 0.1 mm servo motor 0,75 KW.
• Cleaning system with a double face support roller on the output.
• Storage formats tracked on a table with two anti-static positioned before the guillotine and before the table.
• Touch screen control: friendly, multi-lingual (French and / or English), setting and trimming various counts.
• Use of electrical, hydraulic and pneumatic standardized.
• Safety guards for strict compliance with CE.

Options:

• vMTL-700 NSA: automatic loading of sheets.
• Roller and additional heating system for a different bandwidth.

Additionnal devices can be added for further increase the ease of adjustment and work:

• Calibration position supports magnetic stripe: when changing coils, the settings are stored and do not require recalibration.
• Cutting the sheet with lateral control of the distance from the edge to the track.
• Dust extraction on the output rollers.

Magstripe system Laying system Card manufacturing

Banking and plastic card Playing card
