“ Easy to install
- For connecting a Propol measuring unit
- Installation drectly in the production line
Robust design for harsh industrial environments
- Adaptation to your plant and application
- No influence on sterility ”
Ask for a quote
Receive DocumentationContact the supplier

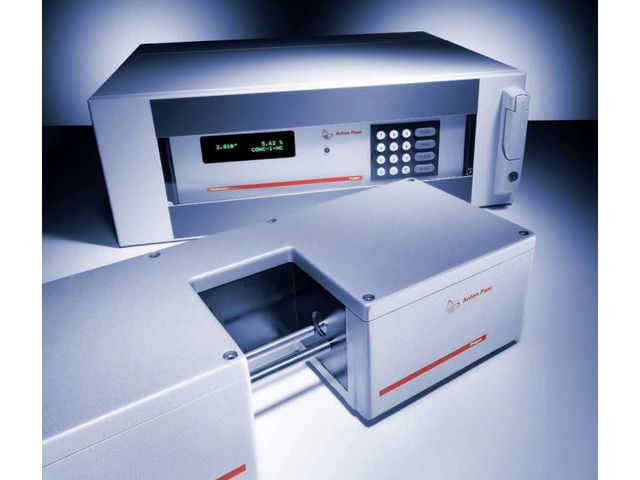

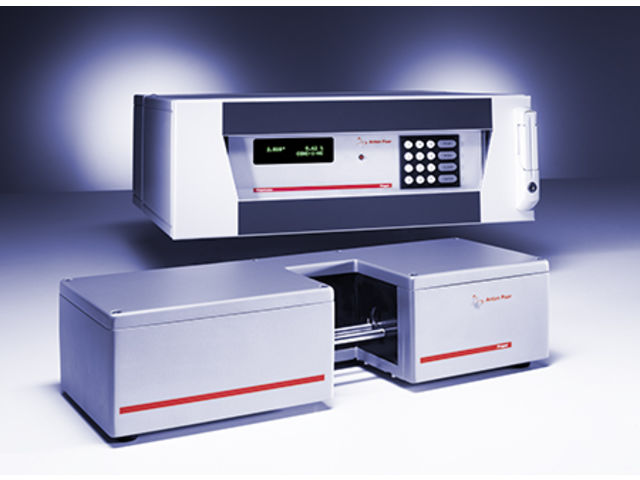

The Propol process polarimeter is used as a polarimetric online or inline sensor for concentration measurement in the production of chiral compounds. Its measuring method compensates the Optical Rotation by means of the Faraday effect. This means it has no moving parts and is therefore maintenance-free. Typical applications are the synthesis or extraction of biochemicals, separation of racemates, liquid sugar poduction and waste water control in sugar refineries.
Application-oriented design
• Measuring unit and control unit connected by a cable of 100 m length
• Robust cast aluminum housing for harsh environments
• Waterproof, protection class IP 65
• Can be modified for explosion proof-status (optional)
• No mechanically moved parts and therefore maintenance-free
• LED light source with an average life of 100 000 h
Adaptable and secure
• Measuring ranges for Optical Rotation, %Sucrose, %Glucose.
• Three user-configurable concentration ranges.
• Facility for automatic temperature compensation.
• Comparator functions with two programmable setpoints.
• Ready for every task with 20 mA analog output and RS-232 interface.
Typical applications
• Synthesis and extraction of chiral biochemicals such as antibiotics, amino acids, hormones, vitamins, flavors and fragrances.
• Separation of racemates, molasses separation, liquid sugar production.
• Waste water control in sugar refineries.
Type : Flanged tube of 25, 32, 40 or 50 mm ID, with side windowsFlanges : According to specificationsOptical length : Min. 10 mm, max. 70 mmFlow cell : Standard: 1.4571 (other material on request)Seals : Standard: FPM (other material on request)Optical Window : Borosilicate glass
