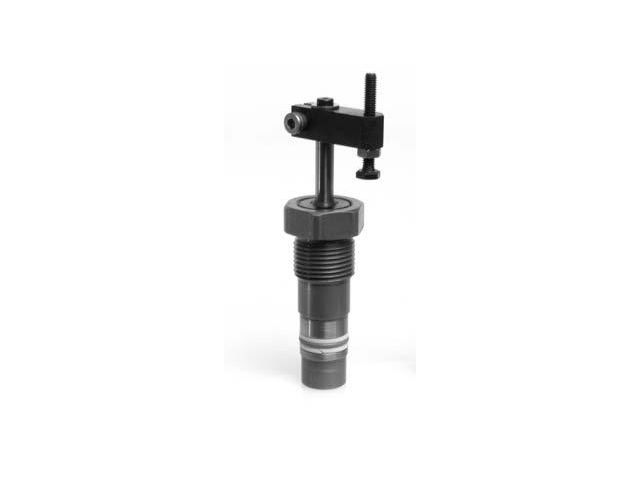

Hydraulic swing clamps are used for clamping of workpieces, when it is essential to keep the clamping area free of straps and clamping components for unrestricted workpiece loading and unloading. Mini swing clamps are particularly suitable for machining of thin-walled workpieces, which require only little clamping forces. Mini swing clamps are an interesting alternative for pneumatic clamping elements, since they require less space.
Minimum dimensions
Double-acting function
Sturdy swing mechanism
Oil supply through drilled channels
Built-in housing of tube connecting thread available

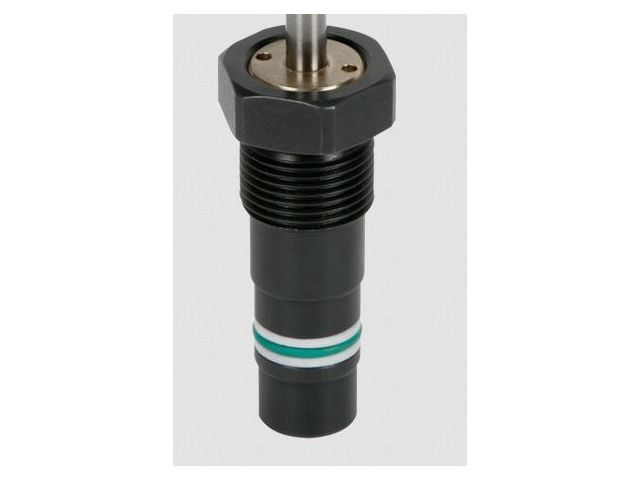

Installation as cartridge type by accessory flange

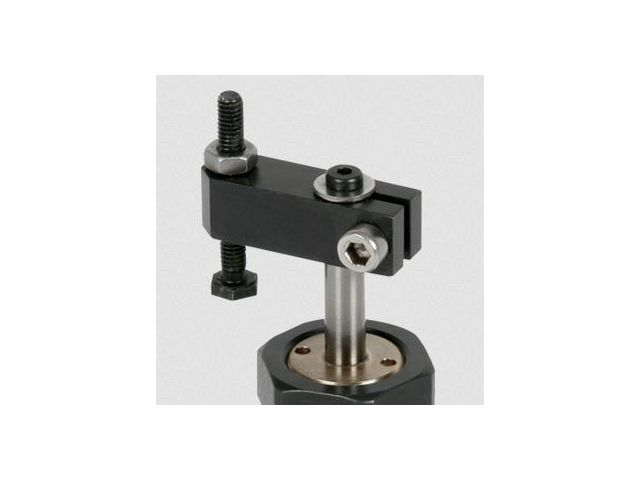

Simple fixing of clamping arm
Clamping arm for clamping with minimum deformation available
Unimpeded loading and unloading of the fixture
Mounting position: variable
Standard FKM seals
Maintenance free
