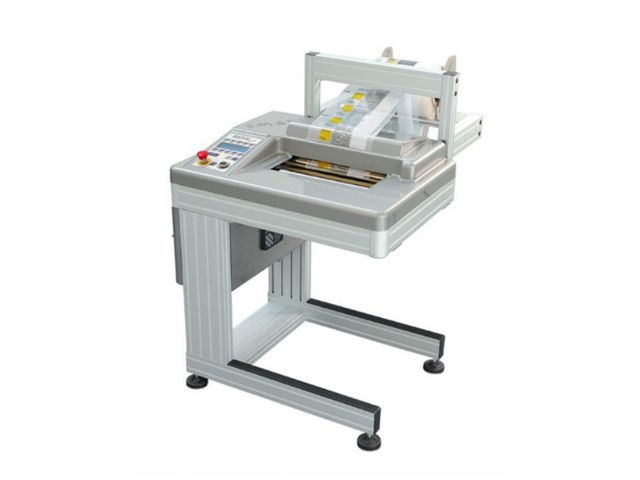

The bagging machine Smart is designed for all applications that require great flexibility of packaging and bagging in a small space.
The manual or automatic product insertion is a great bagging feature. In both cases (manual or automatic), the insertion of the product and the output of the bags are facilitated thanks to the optimal ergonomics of the machine, which can be easily inserted into the packaging site, or directly set up and integrated at the end of the assembly or production line, thus enabling a complete production and packaging process.
Required service features:
From a tubular film spool, the bagging machine Smart intelligently forms the bags. These latter are held positioned with an opening. in this way, it is easier to maintain the filling operation, which can be automatic, semi-automatic or manual.
After filling, the cycle ends with the welding of the bag and the immediate preparation of the next bag.
A machine of great capacity.
The bagging machine Smart is versatile, reliable and easy to manipulate. It is used to package products of different weights and sizes: automotive spare parts, plumbing accessories, furniture metal accessories, pharmaceuticals, dry goods, etc.
Bag width : from 80 to 400mm / Welding width: from 1 to 2.5mm.Treated aluminum made structure and ABS.Possibility of using different types of films: fine, shiny, PPL, PE, rolled barriers,Usable film: Tubular film in spool: LDPE, EPP, Laminates, VCI Film thickness (μ): 50/100. / Machine weight (Kg): 100 Spool width (mm): 80/400. / Machine dimensions L * W * H (mm): 820 * 1002 * 114.Bag length (mm): 100/2000. / Base machine area consumption (n.l.): 2.8.Outside spool diameter (mm): 280 max. / Pneumatic feed with 10 mm tube (bar): 5/7.Spool weight (Kg): 25 max. / Power supply (v): 220/240 monophasic.
