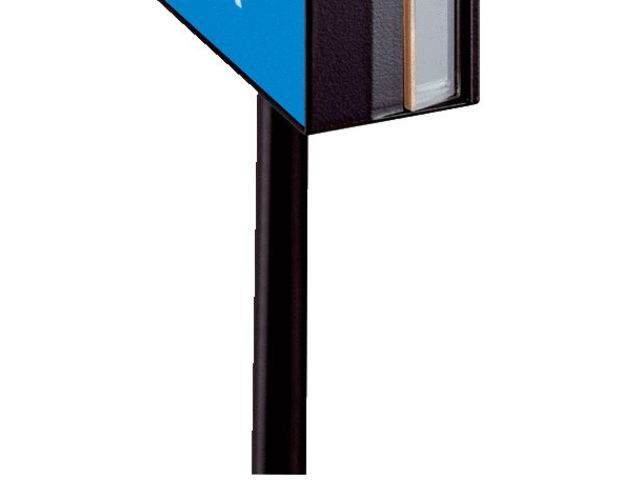

Bar code scanner : CLV601-0D200

Bar code readers

Vote

Ask for a quote

Presentation

Do you need a bar code to be reliably identified by the code reader despite a small reading distance with few distance variations, fixed orientation, and a very small amount of space? Do you also need to stick to a limited budget? As a starter model, the CLV60x bar code scanner with 2K pixel CMOS sensor offers reliable bar code reading at outstanding value for money.

It is compact and features excellent reading performance even with short reading distances, so you only need a small amount of space. Thanks to its high scanning frequency of 750 Hz, it is also suitable for fast applications. The CLV60x can be configured quickly and easily using the SOPAS ET software.

• Minimal space requirements for integration in even the smallest machines
• High performance at a cost-efficient price
• It’s a sound investment thanks to the long-term availability of CMOS technology and proven SICK quality
• The optional adaptation to customer requirements saves time and money during commissioning

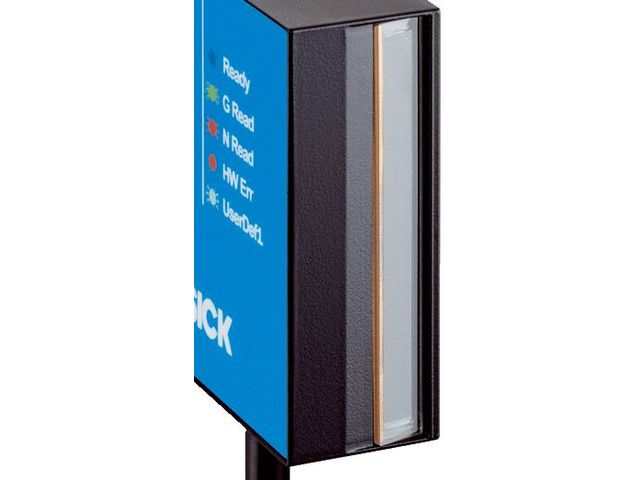

• Easy operation and installation with the SOPAS ET user interface and the ingeniously positioned LED status indicator
• RS-232 or USB interface to connect to a control or an industrial computer

Technical features

Power consumption : Typ. 1 W Enclosure rating : IP40 (DIN 40 050) Protection class : III (VDE 0106/IEC 1010-1) Weight : 230 g, with connecting cable Dimensions (L x W x H) : 55 mm x 52 mm x 20 mm Ambient operating temperature : 0 °C ... +50 °C

Download the complete technical features
