Bench-type Milling and Engraving Systems - TFGM 45

Milling unit

Vote

“ Universal use for a variety of milling and engraving applications on different materials like aluminum, brass, copper, PVC, wood, acrylics, hard fiber boards, etc. ”

Ask for a quote

Presentation

Integrated CAM system for automatic control through a PC/Laptop.
Rigid aluminum construction with stepper motor axis drives plus various equipment options allow universal machining of different materials.
State-of-the-art controller electronics and user-friendly software for quick and reliable processing of customized machining parameters.

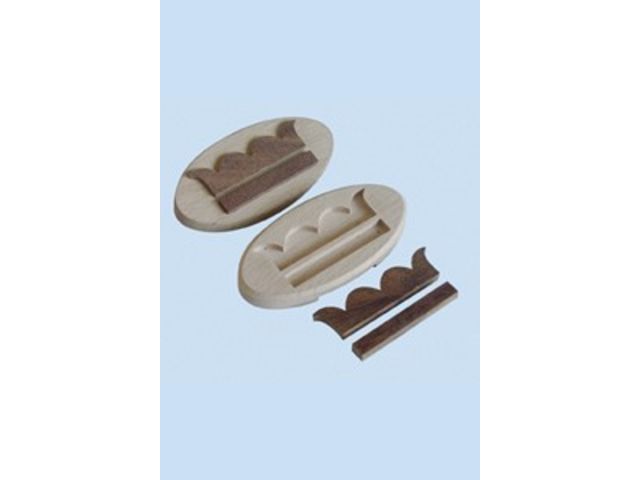

Application Examples:

Production of advertising material (milling, engraving, cutting)
Embossing (coins, medals, coining punch)

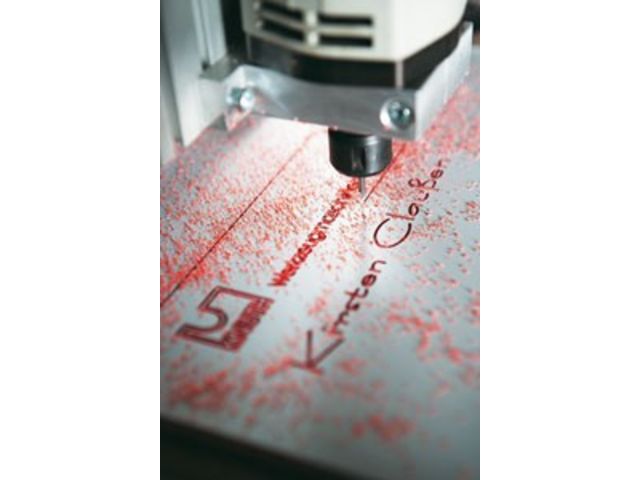

Engraving (door signs, goblets)
Industrial engraving (serial number plates, warning signs)
Electronics (front plates, control panel labeling, PCBs)
Model construction (architecture, hobby)
Precision mechanics
Furniture industry (door manufacturing, interiors, store construction, etc.).

Standard equipement : standard milling motor spindle, collets 3 mm and 8 mm, universal cutter 1,2,3 mm, 4 holding clamps, Opticut CNC CAM System 4.4 - completely wired for connection to customer-provided PC, (System Requirements: Windows 98 / XP / Vista / 7, USB port).

Technical features

Table size (setup table) : 900x600 mm Working speed axe X : 60 mm/s Working speed axe Y : 60 mm/s Rapid feed : 4.200 mm/min Travel X-axis : 560 mm Travel Y-axis : 490 mm Travel Z-axis : 85 mm Speed range : 11.000 - 25.000 rpm Motor rating main drive : 1,05 kW Supply voltage : 220 - 230 V
