Bi-chromatic reflectometric pyrometer ThermoRef

Pyrometers

“ - non-contact temperature measurement without precise knowledge of emissivity - resolution 1°C with an uncertainty of +/-10°C at 1500°C - working distance: 200mm (4mm spot) or 400mm ”

Ask for a quote

The patented ThermoRef bi-chromatic reflectometric SWIR band pyrometer from INNOVIDEA partner Phonoptics is capable of measuring the precise temperature and emissivity of a moving target in real time, without contact, thus correcting any changes in surface and emissivity.

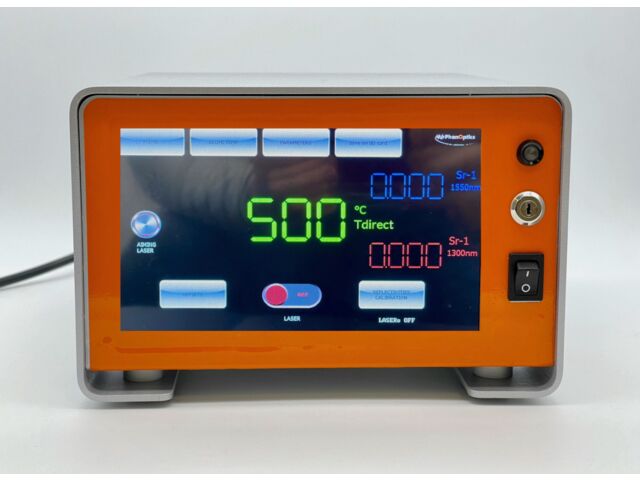

Comprising a fiber-optic, optically collimated measurement probe based on two lasers with wavelengths of 1300nm and 1550nm respectively (Class III B), and a control unit with 7-chip touchscreen and 32Gb SD card, the ThermoRef is powered by 24V (mains adapter supplied).
Its measurement frequency is 10Hz (100Hz possible as an option) and its input/output signals are in GIGE or 4-20mA. It is also equipped with a Class II laser sight.

The entire electronic unit can be controlled remotely via an Ethernet connection.

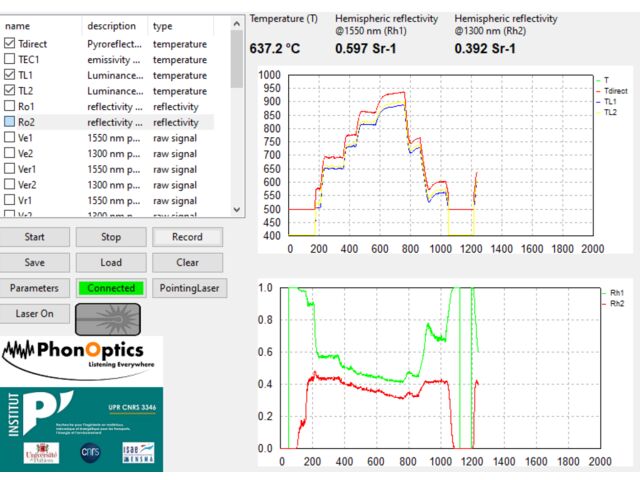

All measured and calculated data can be displayed and stored: luminance temperature, reflectivities,
bichromatic temperature, emissivity-corrected temperature, reflectometric bichromatic temperature
and much more.
The user can view the different values over time, with a self-adjusting scale.

Technical features

Temperature range: 500-1500°C Resolution: 1°C - uncertainty +:610°C to 1500°C Working distance: 200 or 400mm (other upon request) 2 lasers (1300nm, 1550nm) class IIIB + one class II aiming laser housing power supply: 24V (mains adapter supplied) 7-inch touch screen dimensions: 21x14x25 cm - 2-metre fibre as standard weight: 2.5 Kg

Download the complete technical features
