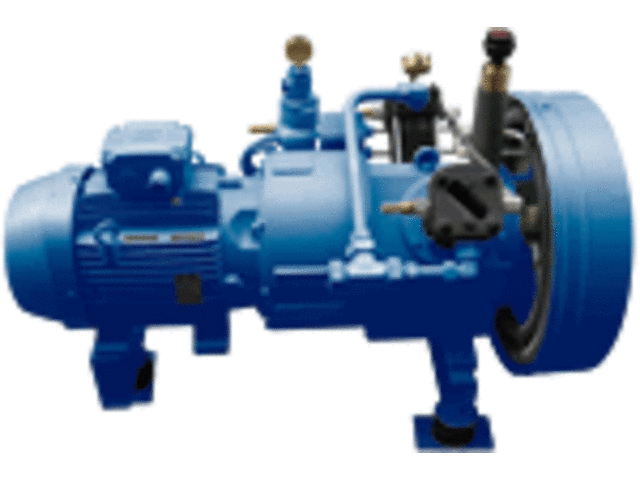

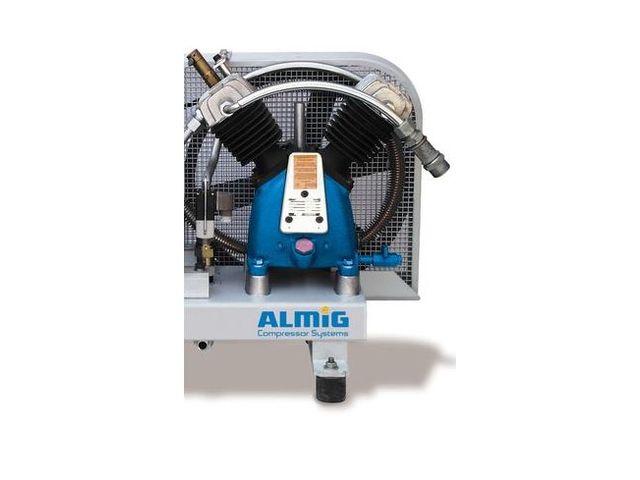

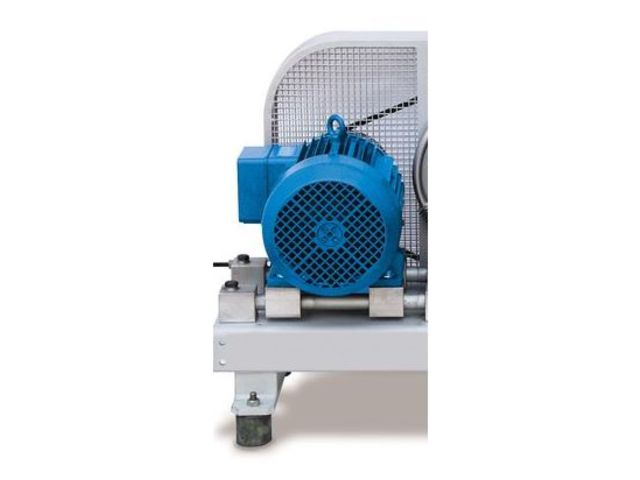

Booster series piston compressor – efficient compressors for secondary compression at low speeds ALMiG Kompressoren GmbH

Booster series piston compressor – efficient compressors for secondary compression at low speeds

Piston compressors

Vote

Ask for a quote

Presentation

ALMiG's Booster series in the 2.2 – 18.5 kW power range is a comprehensive range of piston compressors, used mainly for the secondary compression of compressed air.

Boosters are used where there is already pre-compressed air of up to 10 bar or compressed air is supplied by an upstream normal pressure compressor. The Booster piston compressors compress the compressed air to the desired higher final pressure of no more than 40 bar in a downstream second compression process - and do this simply, safely and without you having to invest in your own high-pressure network.

The compressors are characterised by a compact design and clear, easy-to-service setup. They are known for their cost-effective generation of compressed air and a long service life, even in three-shift continuous operation. Due to their smart modular principle, the air-cooled boosters with low speeds of 600 to 1450 rpm adapt to virtually all operating conditions. They are designed for primary pressures of 5 - 10 bar as standard.

Technical features

Low speeds of 600 – 1450 rpm Smart modular system Clear, easy-to-service setup Suitable for primary pressures of 5 – 10 bar Performance class: 2.2 – 18.5 kW
