Butterfly Valves QSB160 EDWARDS SAS

Butterfly Valves QSB160

Butterfly valve

Vote

Ask for a quote Receive Documentation Contact the supplier

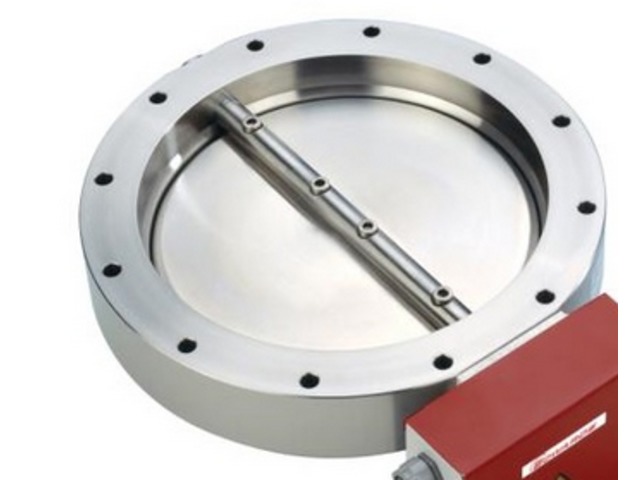

The QSB quarter swing valves are compact, quick acting, high conductance isolation valves. The QSB valves have a polished, stainless steel, ISO flanged body with fluoroelastomer ‘O’ ring sealed valve plate and shaft.

The valve plate ‘O’ ring groove is vented to help maintain a stable high vacuum. The valve shaft ‘O’ rings and bearings are lubricated with Fomblin® grease to prevent gas bursts from behind the shaft seals.

This valve is supplied with a Co-Seal.

Valve plate material : AISI 304 stainless steel Operating pressure range : 10-9 - 3000 mbar, 8 x 10-10 - 2250 Torr Max pressure differential : 1000 mbar / 750 Torr Operating temp range : 5 - 40 °C Max baking temp : 200 °C (without actuator) Leak rate : < 10-9 mbar ls-1, 8 x 10-10 Torr ls-1
Download the complete technical features
