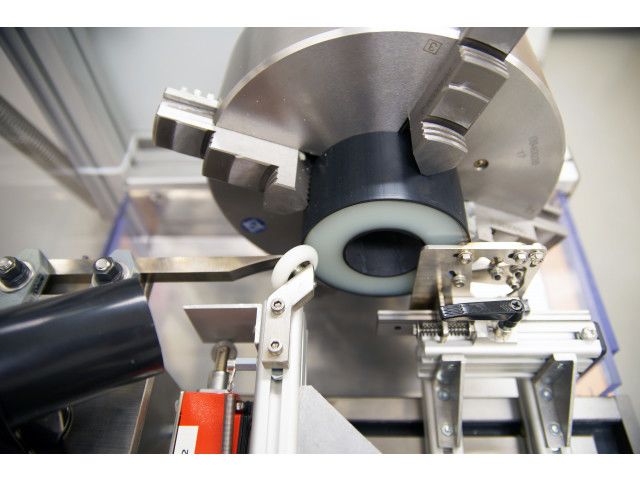

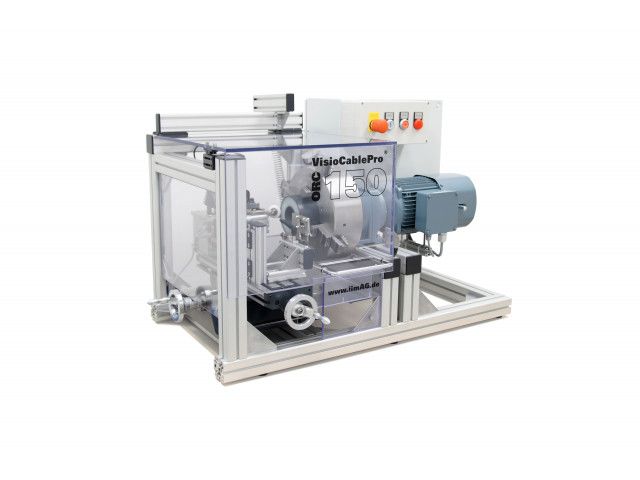

Cable O-Ring Cutter ORC 150 iiM AG measurement + engineering

Cable O-Ring Cutter ORC 150

Tools

Vote

Ask for a quote Receive Documentation Contact the supplier

Device details: ■ Quick and efficient cut ■ Thin, evenly and parallel cut samples with a smooth surface ■ Very robust device made of aluminium and stainless steel - no corrosion ■ By using special chuck jaws it is even possible to cut larger samples with an outer diameter up to 200 mm (7.87“) ■ Light to illuminate the cutting process ■ Precise and repeatable measuring results possiblewith the cut samples Area of application: ■ Sample preparation according to IEC 60811 ■ Optimal cable preparation device for measurements with offline cable measurement devices ■ Cut samples complement the cable measuring devices from the VisioCablePro® series ■ Use of the Cable O-Ring Cutters is essential for your Quality Management ■ Easy use in laboratories and production halls

Size (width x length x height): 910 x 730 x 600 mm / 35.8 x 28.7 x 23.6" Weight: 100 kg / 220.4 lbs Supply Voltage: 230 - 400 V / 50 Hz Input Power: max. 1100 Watt Knife: Chisel 150-1 Lighting: LED Ø - Cable sample: 20 - 150 mm / 0.78 - 5.9" Length - Cable sample: min. 40mm to max. 85mm / 1.6 to 3.3"
Download the complete technical features
