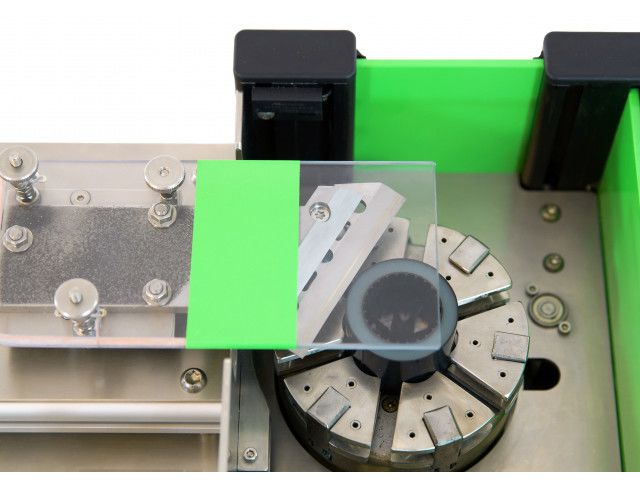

Cable O-Ring Cutter ORC 80

Other concrete mixers

Vote

Ask for a quote

Presentation

Device details: Save up to ⅔ measuring uncertainty with well prepared samples ■ Quick and efficient cut ■ Thin, evenly and parallel cut samples with a smooth surface ■ Is a ideal complement to ORC65 and ORC150 ■ First ORC device which cuts sectors with ease ■ LED light to illuminate the cutting process Area of application: ■ Sample preparation according to IEC 60811 ■ Quick and efficient cut of hard materials (PE, XLPE) with an outer diameter up to max. 80 mm (3.15“) ■ Optimal cable preparation device for measurements with offline cable measurement devices ■ Use of the Cable O-Ring Cutter is essential for your Quality Management ■ Compact and light device to easily use in laboratories and production halls

Technical features

Size (width x length x height): 250 x 380 x 260 mm / 9.8 x 14.9 x 10.2" Weight: 17.3 kg / 38.14 lbs Supply Voltage: 100 - 240 V / 50 - 60 Hz Input Power: max. 221 Watt Knife: Stainless steel blade Lighting: LED Ø - Cable sample: 8 - 80 mm / 0.31 - 3.15 Inch Length - Cable sample: min. 30 to max. 50 mm/ 1.2 to max. 1.9"

Download the complete technical features
