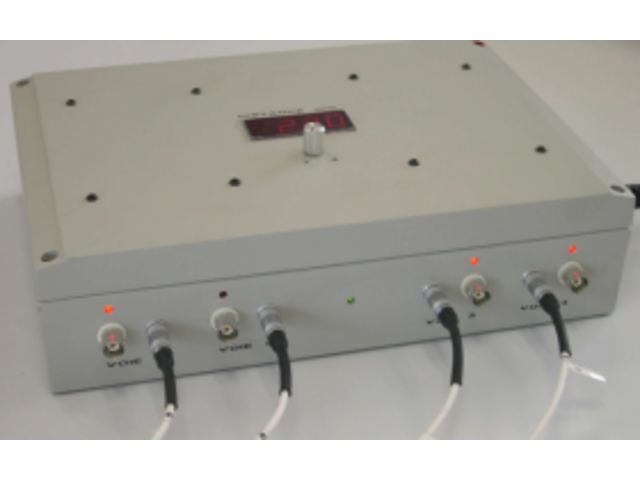

Capacitive measurement unit : CAP 100 CAPAAB

Capacitive measurement unit : CAP 100

Distance measuring

Vote

Ask for a quote Receive Documentation Contact the supplier

• Measuring range : FROM 0→ 0.5 mm to 0 → 12 mm according to the  diameter of the sensor electrode used
• Linearity : < +/- 0.5 % (F.S.O) OF THE PROBE RANGE.
• Temperature drift (/ °C) < 0.005 % (F.S.O) OF PROBE RANGE
• Frequency range : 0 to 20 kHz typical
• Dynamic resolution at maximum probe distance : 0.15 µm at 1Hz analysis bandwidth and 15 µm at 10 kHz
• Measurement output : 0 / +10V linear variation Vs distance or capacity (selected by internal switch)
• Offset measurement output: FROM 0 to -10V & 0 to - 1V
• Adjustable output gain : RATIO FROM 1 to 5
• Packaging : 3U 7F MODULE FOR 19' RACK
• Compatible with CAPAAB capacitive sensors (temperature range : from -270°C to +1300°C)
• Additional modules for : addition, difference, linearisation, direct distance display in mm (or ')

Drop your rating on Capacitive measurement unit : CAP 100

Your answer to the rating from -

OTHER PRODUCTS DISTANCE MEASURING FROM CAPAAB

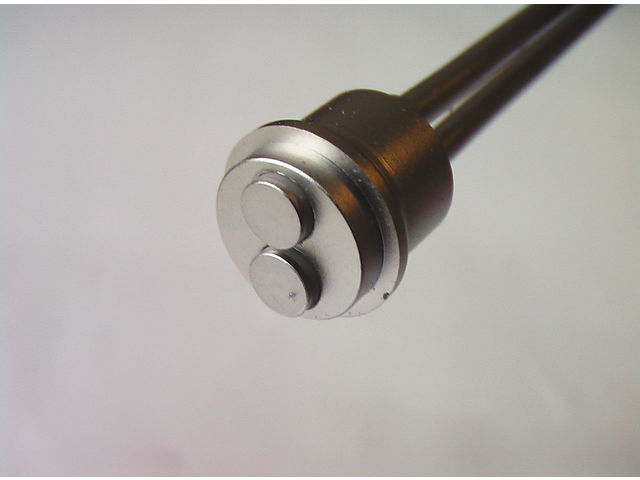

Contactless sensitive captors

Contactless sensitive captors

 Ask for a quote

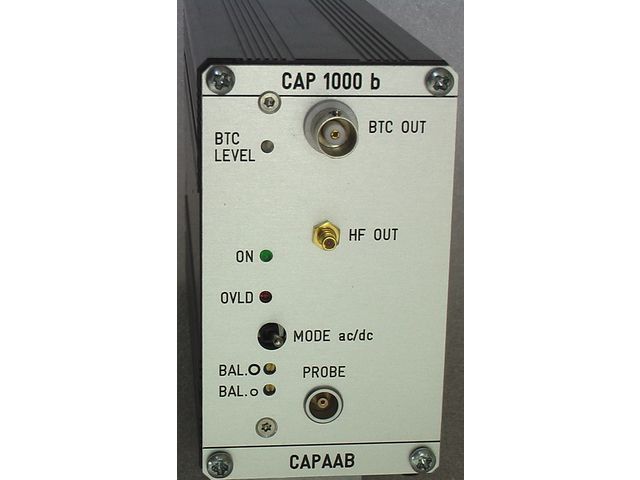

High frequency capacitive conditioner for triaxial probes : CAP 1000 a/b

High frequency capacitive conditioner for triaxial probes : CAP 1000 a/b

 Ask for a quote

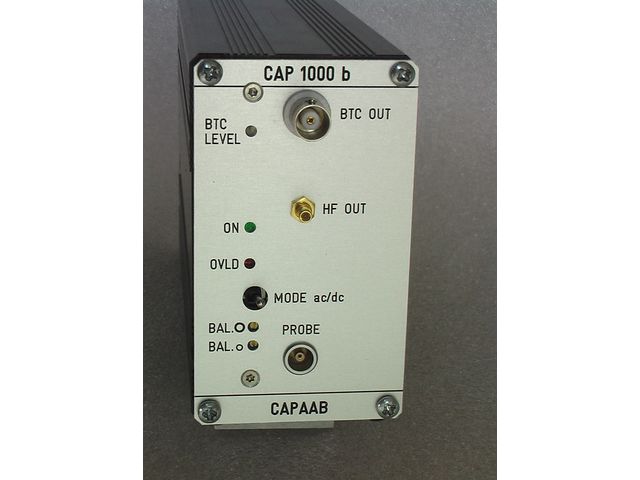

High frequency capacitive unit for pseudo tri axial probes : CAP 1800 a/b

High frequency capacitive unit for pseudo tri axial probes : CAP 1800 a/b

 Ask for a quote

INTERNET USERS ALSO CONSULTED ON THE CATEGORY DISTANCE MEASURING

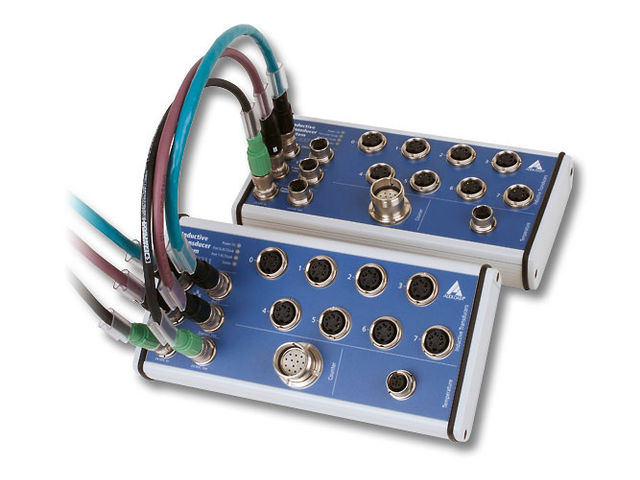

Intelligent Ethernet system for length measurement, 24-bit, simultaneous acquisition

Intelligent Ethernet system for length measurement, 24-bit, simultaneous acquisition

 Ask for a quote
Intelligent Ethernet systems for length mesaurement, 24-bit

Intelligent Ethernet systems for length mesaurement, 24-bit

 Ask for a quote

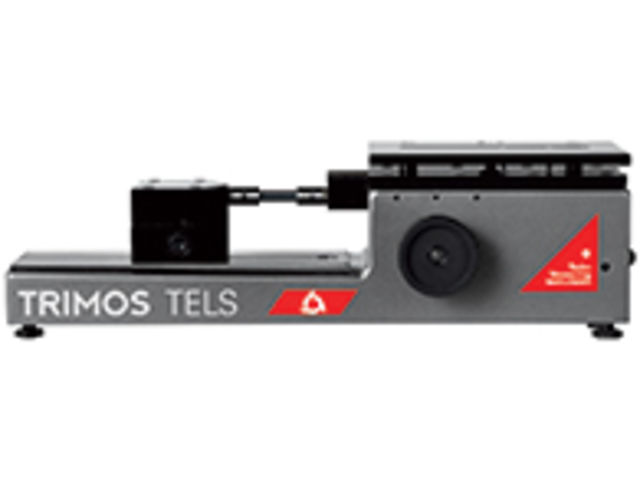

Horizontal Measuring instrument : TELS
