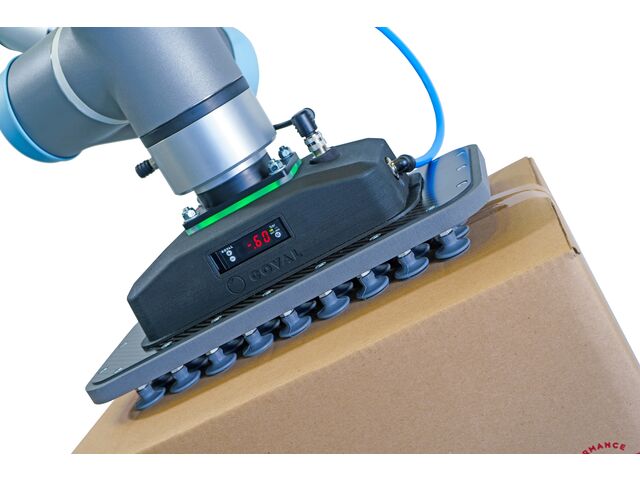

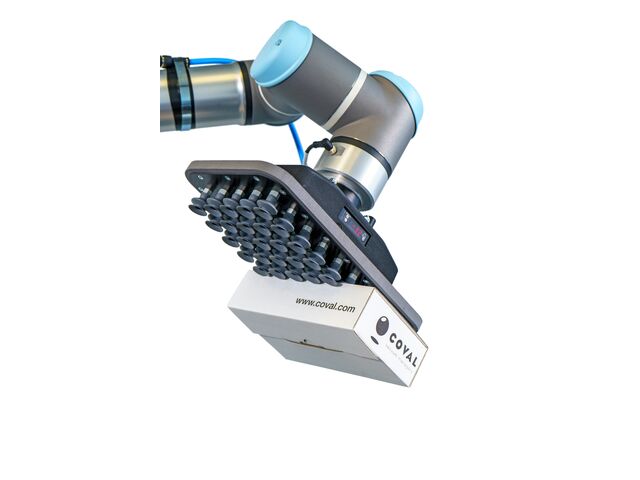

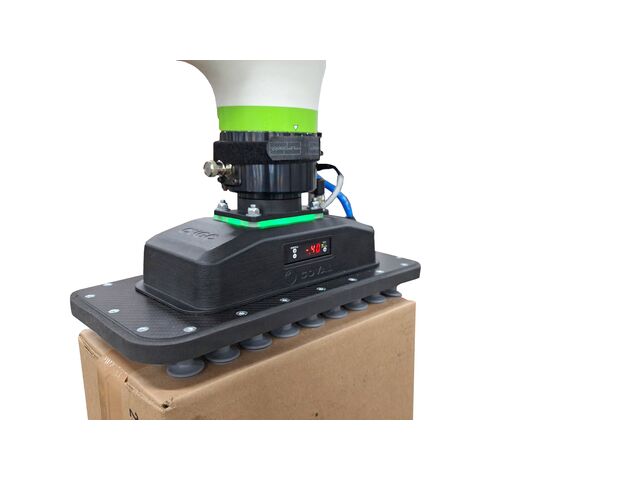

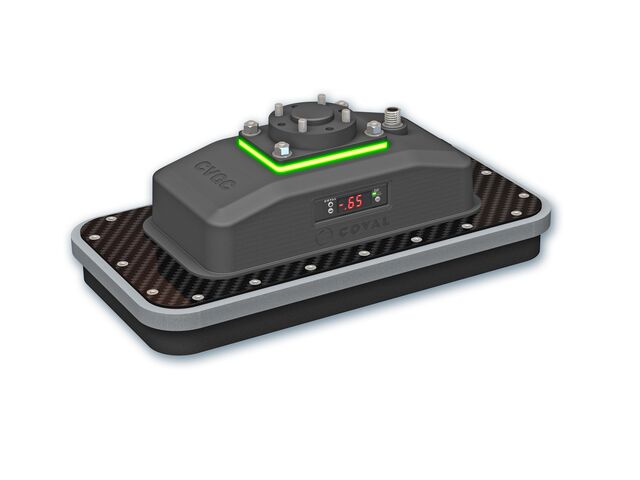

Carbon Vacuum Grippers for Cobots, CVGC Series

Pneumatic picker grip

Vote

“ • Lightweight, (< 1 kg for the smallest model) thanks to a carbon fiber construction will conserve the cobot´s lifting capacity. • Quick assembly and disassembly, without special tools, to promote the cobot´s versatility. • Operator protection via a flexible peripheral foam. Compactness, with a function block housing the vacuum generator, control cartridge, vacuum switch and silencer. • Versatility, with a foam gripping interface suitable for a range of workpieces and available in three dimensions (150 x 150 mm, 240 x 120 mm, 320 x 160 mm). ”

Ask for a quote

Presentation

With their innovative design, Coval’s CVGC carbon vacuum grippers correspond perfectly to the weight constraints, flexibility and safety of collaborative robot applications.
The CVGC series is composed of:
. a carbon structure, 2.5 times lighter than aluminum and offering mechanical strength 6 times greater
. flexible material on the gripper edges, to protect both gripper and operator
. foam gripping interface, for versatile product handling
. a plastic “function” block, including vacuum generator, pilot control cartridge, silencer and vacuum switch…
… all this, in a very compact and ultralight design, guarantees a fast setup and easy integration
on the robot.
The three standard formats allow you to choose your CVGC and ensure the handling of your
loads: corrugate, plastics, metal/glass plates, etc.

Technical features

Lightweight Plug & Play for Cobots Operator protection Versatility

Download the complete technical features

Usage scope

Packaging Cobots Industry
