Presentation

The CMS M Series multi-stage mini vacuum pumps, with their robust and ultra-compact design, are suitable for applications requiring high suction rates such as gripping porous parts, emptying tanks, or random gripping when integrated into vacuum grippers.
The CMS M Series is available in 2 suction flow rates, with or without vacuum and blowoff control, and 2 exhaust configurations.

Main Specifications:

. 80% vacuum
. 2 powerful suction flow rates:
‐ CMSM90X15__ : 300 Nl/min
‐ CMSM90X30__ : 550 Nl/min
. With or without vacuum and blow-off control.
. Vacuum control: NC, NO.
. One M12 4-pin male connector.
. 2 exhaust configurations.

For each application, a suitable CMS M:

CMSM__NVO_
. Without control.

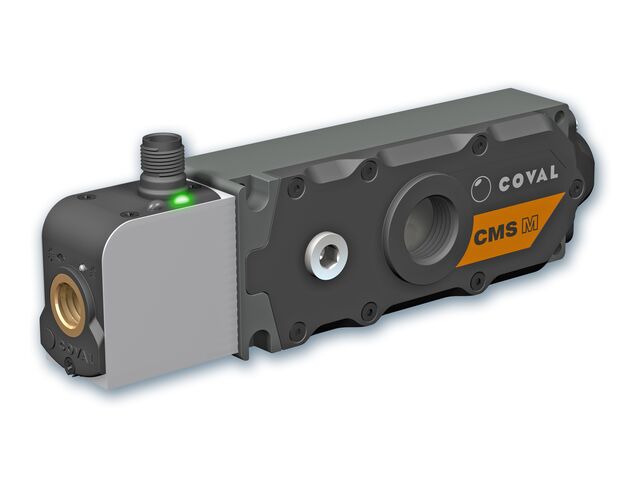

CMSM__SVO_ / VVO_
. With vacuum and blow-off control.
. One M12 4-pin male connector.
. Inputs / Outputs Digital mode.
. Visual indicators of vacuum and blow-off controls.
