CNC Drill and Mill Center - BO 130 CNC

Horizontal boring machine

Vote

“ With Fanuc control for machining of large and heavy workpieces. ”

Ask for a quote

Presentation

4-sided machining.
Rigid square guides ensure consistent work accuracy.
Hauptspindelantrieb mit AC-Servomotor für hohe Leistung und Drehmoment.
Wide machine bed with 4 guideways.
Rigid milling table with high load capacity for part weights up to 5 tons.
Economic and intuitive 3-axis CNC control.
High-quality, high-precision preloaded ball screws supported by special bearings ensure maximum positioning accuracy for all feed axes.
Telescoping stainless steel covers protect the guides from chips and dirt.
Rotary table with manual clamping can be locked at 4 positions: 0°, 90°, 180° and 270°.

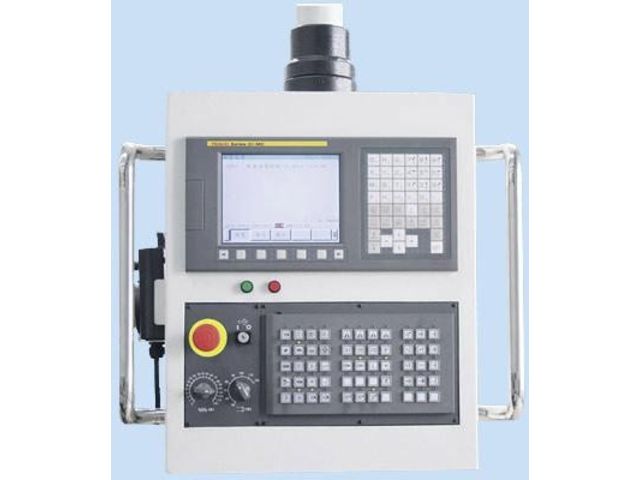

Standard equipement : Fanuc 0i MD with Manual Guide 0i, electronic hand-wheel, RS-232 interface, central lubrication, work lamp, operating manual and programming instructions.

Technical features

Part No. 180095 Drilling capacity : 50 mm Counter-boring capacity : 250 mm Table dimensions : 1.000x1.350 mm Table load capacity : 5.000 kg Number of T-slots : 7 Pieces T-slots, width : 22 mm Overall dimensions (length x width x height) : 5,01x3,7x3,6 m Weight : 17.000 kg Spindle speed : 12 - 1.000 rpm
