CNC Lathe : BIGLIA B131 - S1

CN Tower

This product is temporarily unavailable.
Think about consulting similar products.

Ask for a quote

Presentation

• Stock number : 5817
• Brand : BIGLIA
• Model : BIGLIA B131 - S1
• Year : 1989

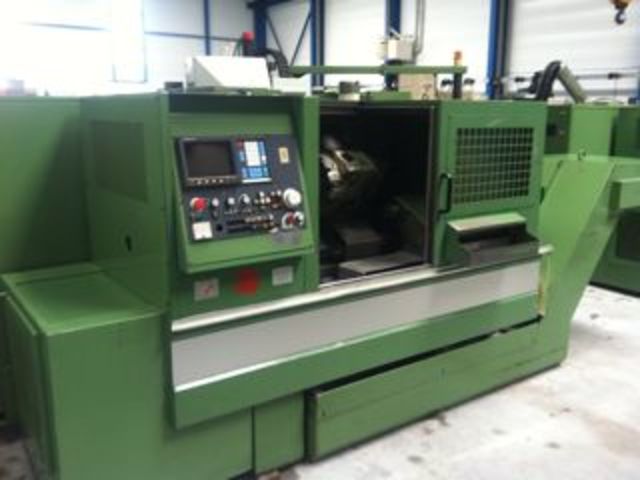

1 USED CNC LATHE BIGLIA B131 - S1

• Bar diam. : 2,76”
• Max Turning diam.: 12,60”
• Max Turning Length : 16,53”
• Max Swing over bed : 20,47”
• Distance Between Center : 27,56”
• Number Axis : 2
• Turning Speed Spindle : 4000 rpm
• Power Motor : 15 Kw
• Nose Spindle : ASA 6”
• Fast Feed : X 472,44”/min - Z 472,44”/min
• Travel X axis : 7,48”
• Travel Z axis : 16,53”
• 1 Turret 12 Stations

Hydraulic Tail Stock

• Automatic Quill Stroke : 7,87”
• Quill Diameter : 3,35"
• Machine Dimensions : 167,32" x 67,71" x H 66,93"
• Weight : 4200 Kg

Equipments

• 1 Chuck 3 Jaws ∅ 8,27”
• 1 Clamping Collet F68
• 1 Parts Catcher
• 1 Chip Conveyor
• 1 CN FANUC OT.B
• Machine ready for Barloader
