CNC Lathe : MONFORTS RNC 3 | Contact SAVOIE ALPES MACHINES OUTILS

CNC Lathe : MONFORTS RNC 3

This product is temporarily unavailable.
Think about consulting similar products.

Ask for a quote

• Stock number : 5903
• Brand : MONFORTS
• Model : MONFORTS RNC 3
• Serie number : 520795

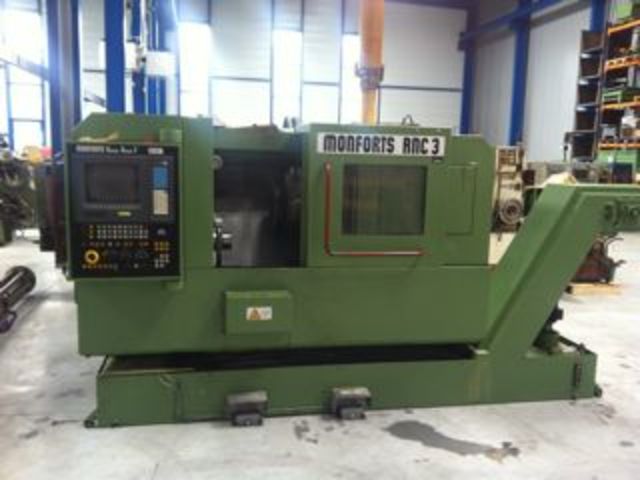

1 USED CNC LATHE MONFORTS RNC 3

• Max Diameter Bar Capacity : 1,65”
• Max Swing over bed : 14,96”
• Max Turning Diameter : 14,96”
• Max Machining Length : 19,68”
• Chucking Diameter : 6,30”
• Spindle Motor : 11/15 kW
• Spindle Speed Range : 6000/min (RPM)
• Spindle Bore : 3,54”
• Spindle Nose : A? DIN 55026
• 1 Turret 12 Stations VDI 40
• X Axis Travel : 6,89”
• Z Axis Travel : 22,05”
• Rapid Travers Rates : X = 393,70”/min - Z = 393,70”/min
• Tailstock Taper :
• Machine Dimensions : 122,05” x 99,60” x H68,90”
• Machine Weight : 5000 Kg

Equipments

• 1 CN FANUC 15T
• 1 Programmable Tailstock
• 1 Probe lever arm of Tools
• 1 Chip conveyor
• 1 Parts Catcher
