Presentation

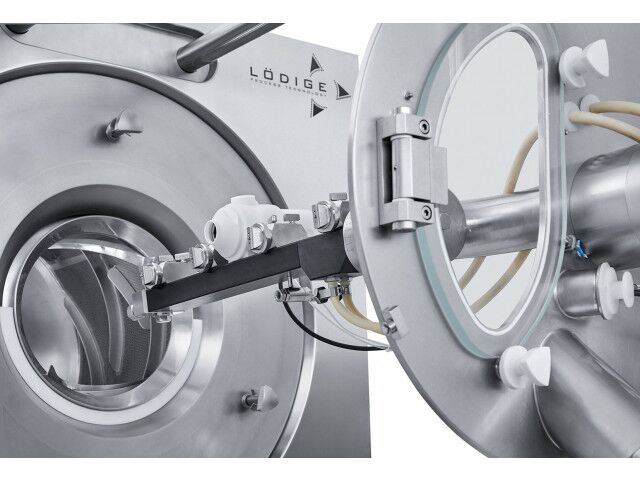

The coaters series type LC were specifically developed for coating tablets. With our coater range, Loedige is one off the technological market leader.

The maximised tablet bed surface in the Lödige coater and the maximum number of spray nozzles mean that extremely high liquid volumes can be applied with extremely high air supply volumes within a very short time. The newly designed, particularly low-turbulence air routing ensures a highly efficient and gentle use of dryer air. These features ensure a reliable coating process and short process times. Moreover, the low-turbulence air routing prevents contamination from the very start, thereby reducing the cleaning workload.

Modern sensors permit optimisation of the spraying and drying process.
Simple yet secure nozzle arm adjustment makes for easier handling.

Technical features

Explosion protection: Machine line design for use of organic solvents (acetone, isopropanol, ethanol). Fully automatic nozzle arm: Distance of the nozzle and the tablet bed and spray angle in relation to tablet bed is controlled Sugar coating: The Lödige coater can be equipped for production of both film tablets and sugar-coated pills. Mini tablets or pellets: The drum perforation can be adapted to the product using different sizes. Qualification: Complete qualification documentation, incl. risk analysis based design documents, GAMP5

Download the complete technical features
