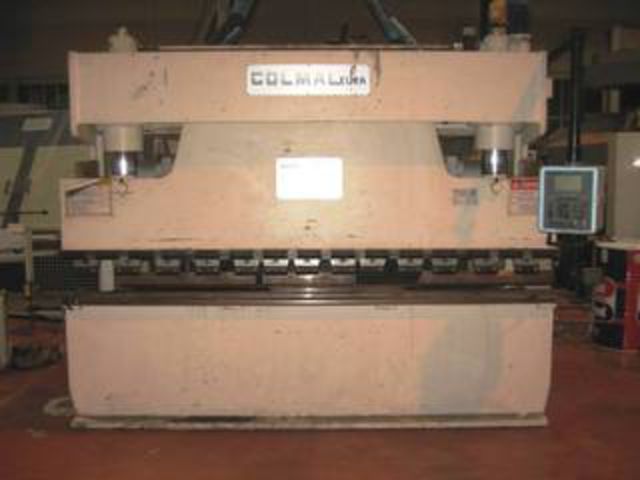

COLMAL CNC Press Brake - Type: PIX 100

Sheet metal bending brake

Ask for a quote

Presentation

• Strength : 100 T.
• Maximum length : 3100 mm
• Slider stroke : 140 mm
• Depth of the gooseneck : 310 mm
• Backgauge capacity : 500 mm
• Distance between the table and the slide: 350 mm
• Numerical control : CYBELEC DNC 60
• Width of the table : 200 mm
• Approach speed : 100 mm / s
• Working speed : 10 mm / s
• Distance between uprights : 2700 mm
• Hydraulic power unit motor : 5.5 kw
• Hydraulic control
• Approximate weight : 6500 kg
• Overall dimensions : 3600x1600x2700 mm

Summary

- 2-axis digital control (X-Y).
- Router of the pneumatic fingers.
