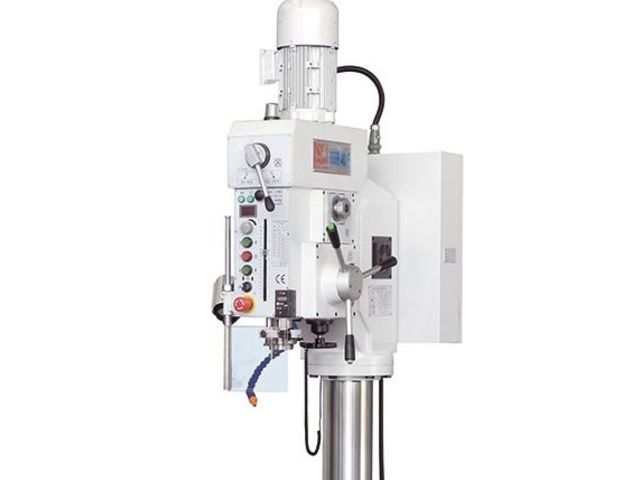

Column Drill Press - SSB 40 F Super KNUTH

Column Drill Press - SSB 40 F Super

Column drill

Vote

“ Production Drill Press with infinitely variable speed and tapping feature ”
Ask for a quote Receive Documentation Contact the supplier

Ideal for single part and series productions, for drilling, countersinking, reaming and tapping

  • Very rigid construction with thick-walled column and large throat
  • Infinitely variable speed adjustment with back gearing and digital speed display
  • 4 automatic drill feeds with electromagnetic clutch control and automatic shut-off when reaching the limit stop
  • Motorized table height adjustments

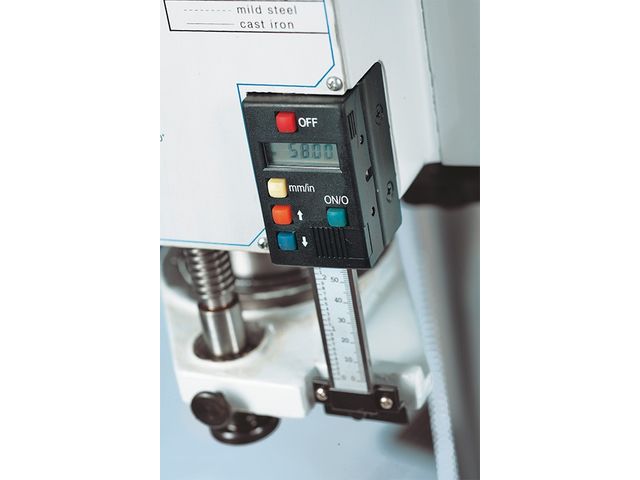

  • Digital boring depth display

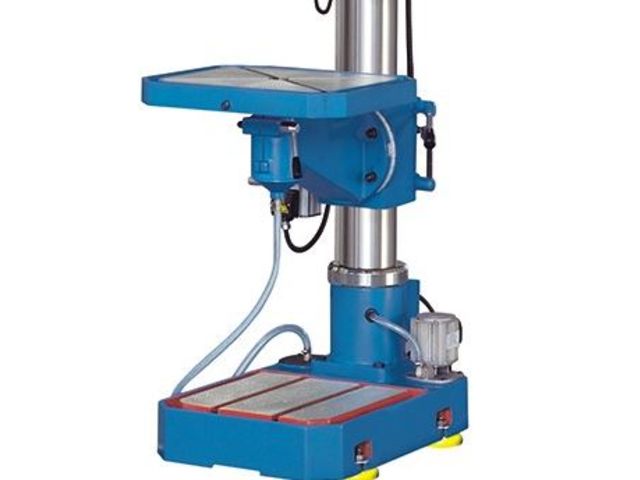

  • Large drilling table with circumferential coolant groove, height adjustement, and ± 45° swivel range
  • Tapping unit is standard
Standard equipements : Tapping unit, protective shield, work lamp, coolant system, operating tools, operator manual

Drilling capacity : 40 mm Tapping capacity, steel : M 24 Table set up area : 540x440 mm Quill stroke : 190 mm Manual table travel : 570 mm Powered table travel : 430 mm Table swivel range (max.) : ± 45° Column diameter : 140 mm Spindle nose-to-table distance (max.) : 665 mm Spindle nose-to-foot distance : 1.195 mm
Download the complete technical features
