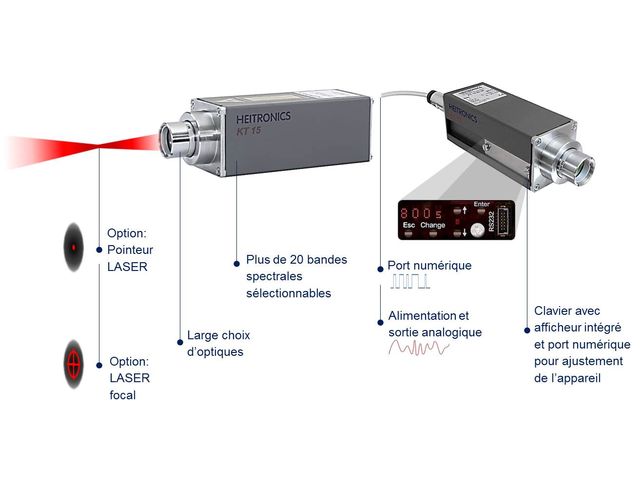

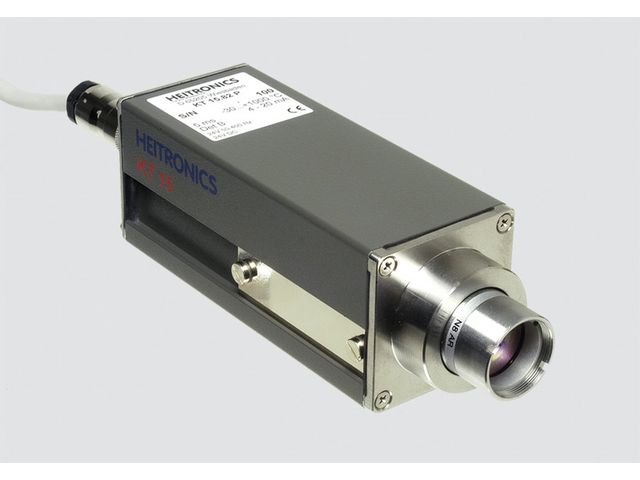

This device, known for its high precision and low time drift, is mainly dedicated to industrial applications and then to medical, chemical and atmospheric sciences.
With a wide range of optics, this instrument can measure targets from the millimetre and response times of 5 ms. It can be configured among a choice of several spectral bands ranging from 2 to 20 m and a wide range of temperatures ranging from -100 to 3,000 degrees Celsius.
-
Extreme high stability due to Chopped Radiation Method
-
Very high resolution 0.03 °C
-
Fast response times from 5 ms on low temperatures
-
Wide temperature ranges -50 °C to 3000 °C (> Models)
Features
-
Focus on application: all spectral ranges from freeze drying to molt
-

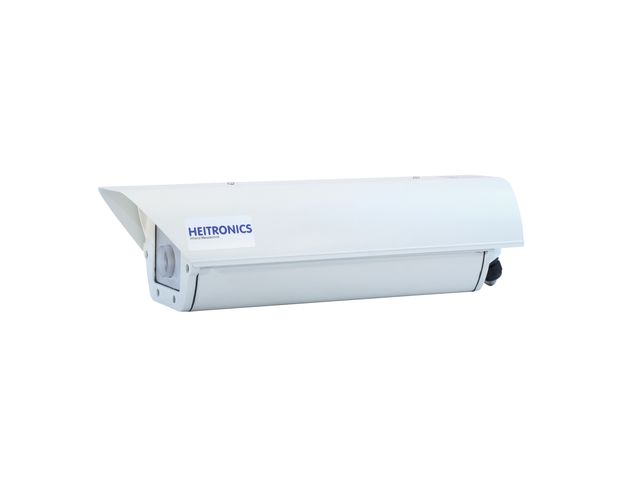

Stainless steel cooling and protecting housing up to 320°C
-
Fast target measurement
-
Focus laser marks field-of-view
-
Very high linearization accuracy (0.02K)
-
User interface software for complete programming and measurement
-
Fields-of-view from 0.7 mm at low temperatures allow high optical resolutions
Routines
-
Permanent self-monitoring routines ensure a reliable operation.
-
The integrated calibration routine allows a fast and reliable control of the devices at the face.
Data
-
Three programmable analog outputs (0/4 - 20 mA, 0 - 10 V)
-
Seral interface for programming and data transfer
-
etc.
