High-performance confocal controllers for precise, high speed measurement tasks | IFC2416/2417

“ High-performance confocal chromatic controller for 1- and 2-channel applications 1- and 2-channel version for high-precision distance and thickness measurements High measuring rate 25 kHz ”

Ask for a quote

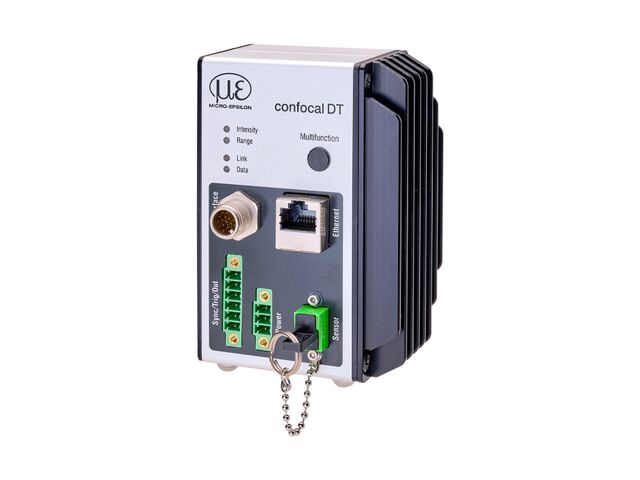

The confocalDT IFC2416 / IFC2417 controllers impress with a high measuring rate of 25 kHz and exceptional light intensity. This enables precise and stable distance and thickness measurements at high speed – even on challenging materials and surfaces. Their compact design makes them the ideal solution for high-resolution measurements in almost all industrial sectors – from production lines to semiconductor machine construction. Thanks to the multi-peak option, up to 5 layers of transparent objects can be detected. The controllers are compatible with all Micro-Epsilon sensors, so that the measuring range, offset distance and special properties such as vacuum suitability, measuring angle or beam path can be selected as required.

Maximum precision. Maximum flexibility. Powerful in any environment.

Technical features

High-precision measurements with 1 nm resolution Adjustable measuring rate up to 25 kHz for highly dynamic measurements Compact controller design IP40 aluminum housing Numerous interfaces for easy integration: Ethernet, RS422 | IFC2417 also features EtherCAT Analog output (current & voltage) 2 or 3 encoder inputs and switching output Compatible with all confocalDT sensors (measuring ranges from 0.1 to 30 mm) Ideal for series applications and OEM Measuring channels: 1 with IFC2416, 2 with IFC2417
