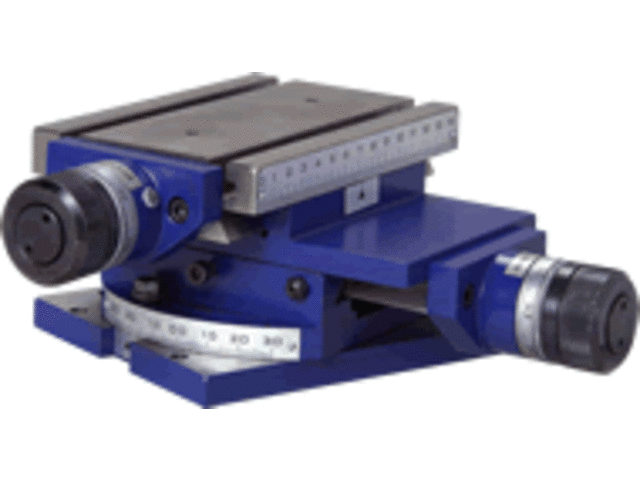

Coordinate Table

Coordinate Table MG 0 / KT 50 :

  MG 0 KT 50 1. Adjustable x, y, and z-axis x, y, and z-axis x-axis: +/- 60mm +/- 25mm y-axis: +/- 55mm +/- 25mm z-axis: 360° rotation 360° rotation 2. T-nut for sliding block DIN508: 10 8 3. Weight: 20kg 8.5kg 4. Order number coordinate table: # 35 01 67 # 35 01 51

    Coordinate Table KT 30 / KT 10 :

  KT 30 KT 10 1. Adjustable x, y, and z-axis x, y, and z-axis x-axis: +/- 15mm +/- 15mm y-axis: +/- 15mm +/- 5mm z-axis: 360° rotation 360° rotation 2. T-nut for sliding block DIN508: M5 M5 3. Weight: 1.7kg 1.4kg 4. Order number coordinate table: # 70 00 76 # 61 00 76 5. Slewing mechanism with precise adjustment: # 70 00 77 # 61 00 77 6. Fixing plate GP 80: # 89 80 07
