Coriolis flowmeter | Proline Promass F 300

Coriolis flow meter

Vote

“ - Highest process safety – immune to fluctuating and harsh environments - Fewer process measuring points – multivariable measurement (flow, density, temperature) - Space-saving installation – no in/outlet run needs - Full access to process and diagnostic information – numerous, freely combinable I/Os and fieldbuses - Reduced complexity and variety – freely configurable I/O functionality - Integrated verification – Heartbeat Technology ”

Ask for a quote

Presentation

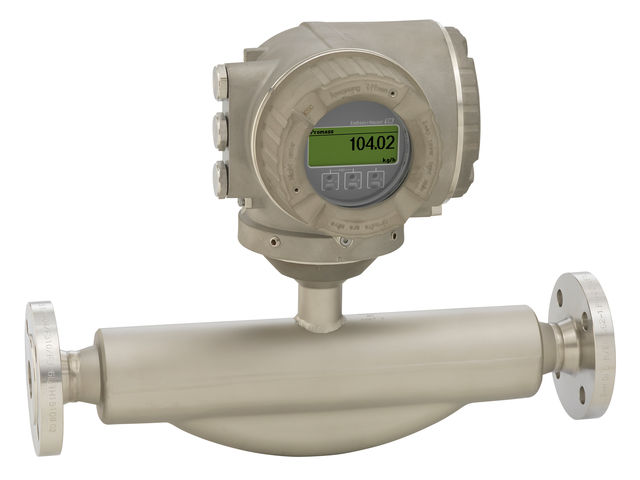

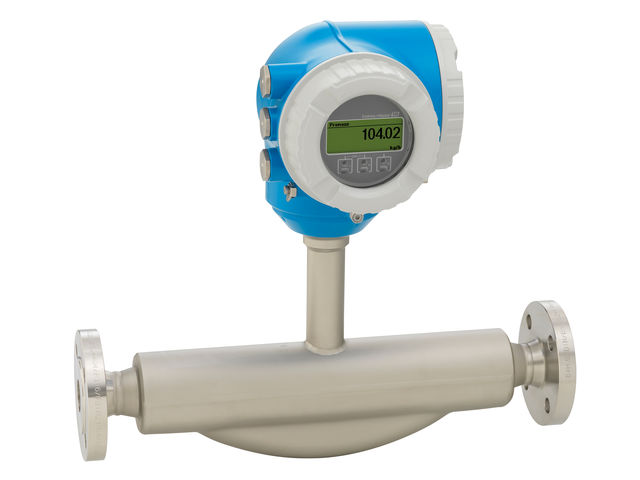

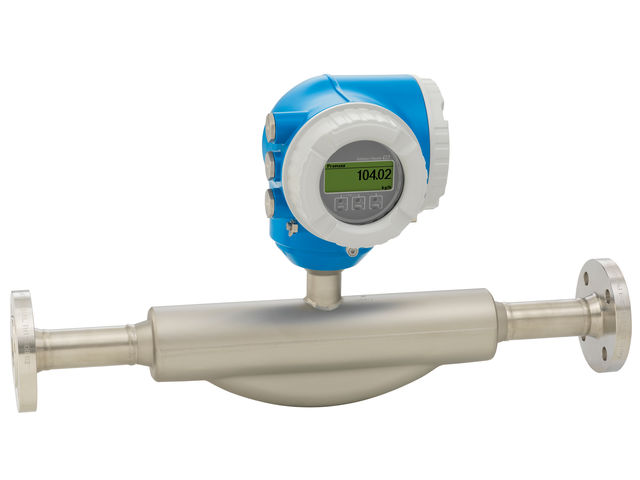

Flowmeter with premium accuracy, robustness and a compact, easily accessible transmitter

Promass F has a long-standing reputation as a highly accurate sensor. Immune to fluctuating and harsh environments, it is suited for the broadest range of applications.

With its compact transmitter Promass F 300 offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options.

Heartbeat Technology ensures compliance and process safety at all times.

Technical features

Measuring principle : Coriolis Nominal diameter range DN 8 to 250 (⅜ to 10'') Measured variables : Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration Measuring range : 0 to 2 200 000 kg/h (0 to 80 840 lb/min) Max. process pressure : PN 100, Class 600, 63K Degree of protection : Compact version: IP66/67, type 4X enclosure. / External WLAN antenna: IP67 / IP69 Hazardous area approvals : ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC Digital communication : HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, Profinet, Ethernet/IP, OPC-UA Sensor housing material : Standard: 1.4301 (304) / Option: 1.4404 (316/316L) Ambient temperature range : Standard: –40 to +60 °C (–40 to +140 °F) / Option: –50 to +60 °C (–58 to +140 °F)

Download the complete technical features

Usage scope

Measuring principle operates independently of physical fluid properties such as viscosity or density Highest measurement performance for liquids and gases under varying, demanding process conditions
