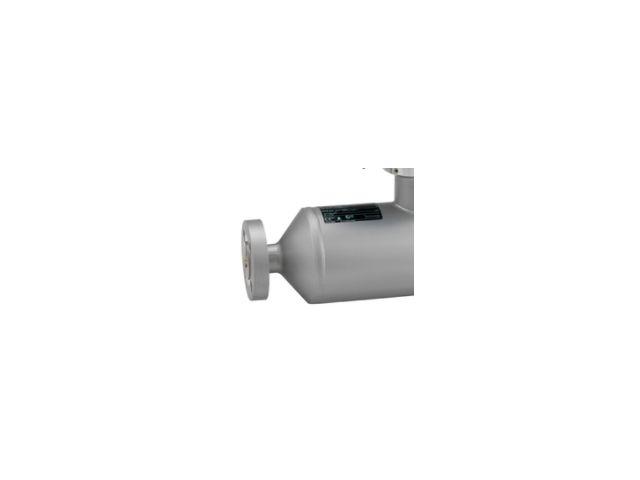

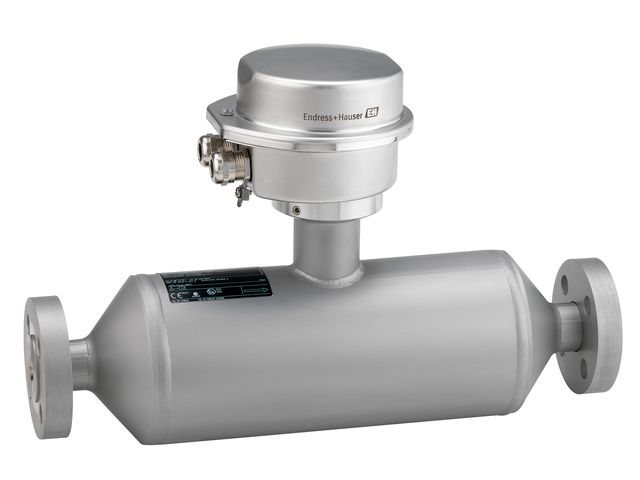

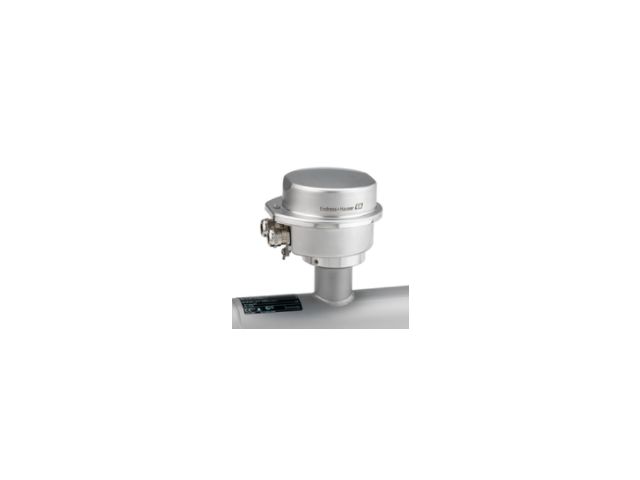

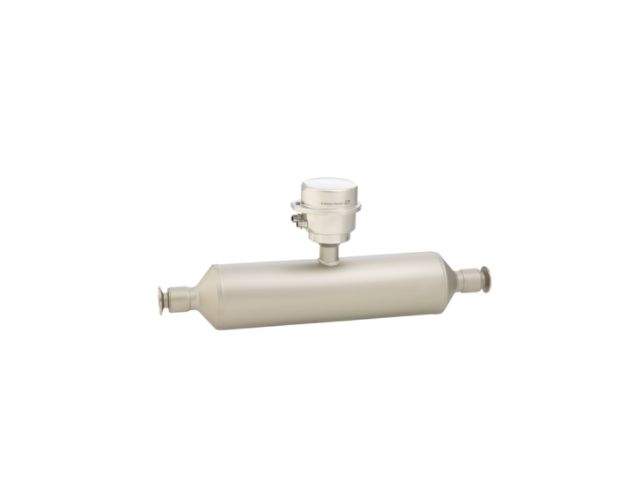

Coriolis flowmeter | Proline Promass I 100

Coriolis flow meter

Vote

“ - Energy-saving – full bore design enables minimal pressure loss - Fewer process measuring points – multivariable measurement (flow, density, temperature) - Space-saving installation – no in/outlet run needs - Space-saving transmitter – full functionality on smallest footprint - Time-saving local operation without additional software and hardware – integrated web server - Integrated verification – Heartbeat Technology ”

Ask for a quote

Presentation

Combines in-line viscosity and flow measurement with an ultra-compact transmitter

The straight single-tube design of the Promass I 100, provides the regular Coriolis flowmeter outputs of mass flow, density and temperature, additionally it provides in-line viscosity measurement as an optional output.

Combined with the smallest transmitter housing available today it delivers full performance on the smallest footprint. Promass I 100 will be the preferred choice for system integrators, skid builders and equipment manufacturers.

Technical features

Measuring Principle : Coriolis Nominal diameter range : DN 8 to 80 (⅜ to 3'') Measured variables : Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration, viscosity Measuring range : 0 to 180 000 kg/h (0 to 6600 lb/min) Max. process pressure : PN 100, Class 600, 63K Degree of protection : Standard: IP66/67, type 4X enclosure / Option: IP69 Outputs : 4‐20 mA HART (active) / Pulse/frequency/switch output (passive) Input : None Digital communication : HART, Modbus RS485, EtherNet/IP, PROFIBUS DP, PROFINET Power supply : DC 20 to 30 V

Download the complete technical features

Usage scope

Measuring principle operates independently of physical fluid properties such as viscosity or density Measuring liquids and gases in applications requiring low pressure loss and gentle fluid treatment
