MITUTOYO

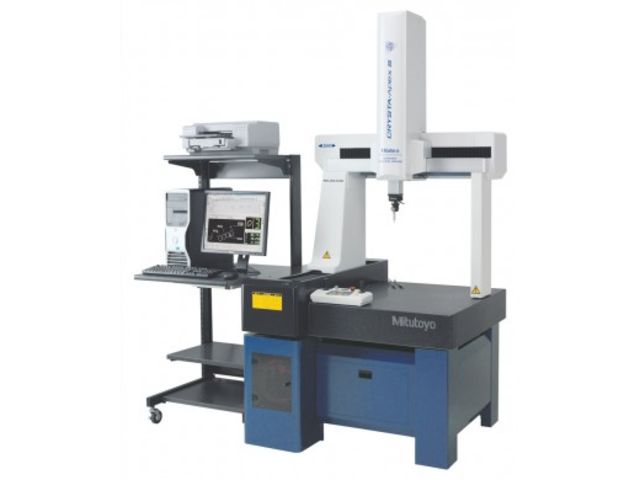

Crysta-Apex S Coordinate Measuring Machine MITUTOYO

Crysta-Apex S Coordinate Measuring Machine

3D measurement

Vote

Ask for a quote Receive Documentation Contact the supplier

A Mitutoyo Coordinate Measuring Machine designed and constructed using all Mitutoyo’s experience in CNC CMM technology, this machine is built using lightweight materials and an innovative moving-bridge type machine structure, providing high motion stability to take advantage of the increased scanning speed of this model, high accuracy, and affordability. The temperature correction function (16°C to 26°C) can increase your quality control even on the shop floor. In addition to point-to-point measurement, the MPP-310Q and Mitutoyo Laser probes provide a contact/non-contact scanning function.

Model CRYSTA-Apex S9106 Models available S500, S700, S900, S1200 (click the 'Features' tab for more information). Range ( X,Y,Z) 905 x 1005 x 605mm Resolution 0.1µm Accuracy (1.7+3L/1000)µm Length standard High accuracy linear encoder Max. acceleration 2598mm/s Max. drive speed 519mm/sec Table size 880 x 1720mm Tapped inserts M8 x 1.25mm
