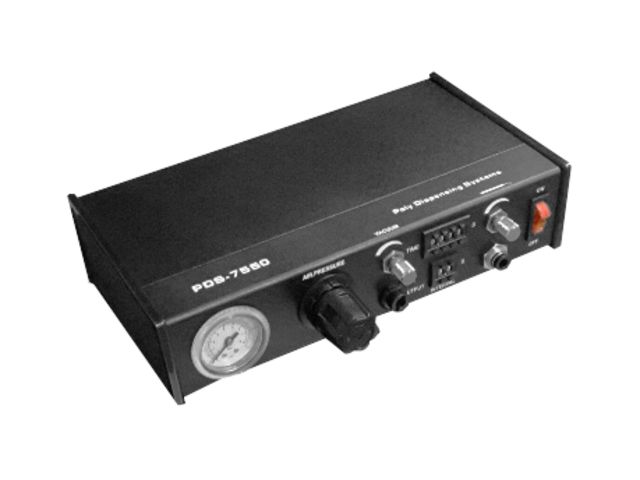

Dispenser pneumatic PDS 7550

Dosing systems

Vote

Ask for a quote

Presentation

A dispenser and a Pick-Up in one

The dispenser 7550 time/pressure calibrated exists in 0-1 bar and in 0-7 bar. With its MAC solenoid valve, the dispenser makes it possible to dispense with accuracy very little quantities of products and simultaneously, it enables a movement of little pieces by aspiration (like the Pick-Up dispenser).
This double function enables you to gain time, money and place. They are delivered with a kit of starter consumables as well as an input pen.

Dispensing

The first function of the PDS7550 is the dispense of fluids thanks to the application of a consistent pressure during a time laps. It delivers repetitively a quantity of product by the simple impulsion of a pushbutton or a pedal.

Pick - Up

The dispenser 7550 has also a venture system which enables to maintain a small item in suspension at the top of the gun. By one easy action of the manual command or pedal, the system aspires. Once in position, you simply have to release the command to liberate the item.

Technical features

Material : Industrial metallic box Models : 0 - 7Bar et 0 - 1Bar Dimensions : 25.7 x 12.7 x 6.7 cm Weight : 1,68kg Control : Finger and pedal Air entry : 7 Bar AC entry : 110 - 220 VAC Rate : More than 600 cycles / minutes

Download the complete technical features
