Distance sensor with a reflector for large distances | FR 55-RLAP-70-2PNSI-L8 SENSOPART FRANCE SARL

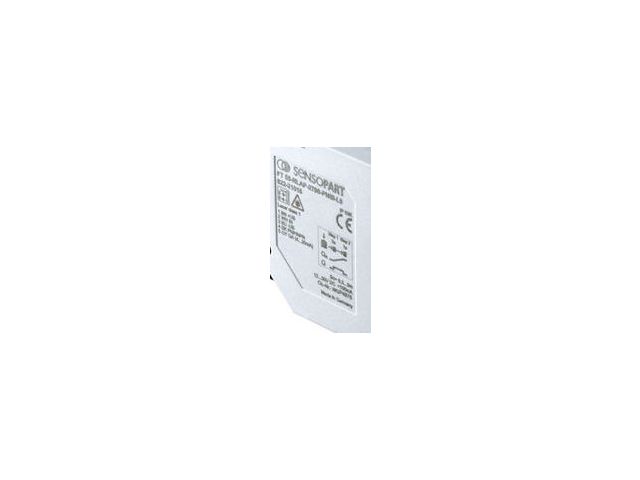

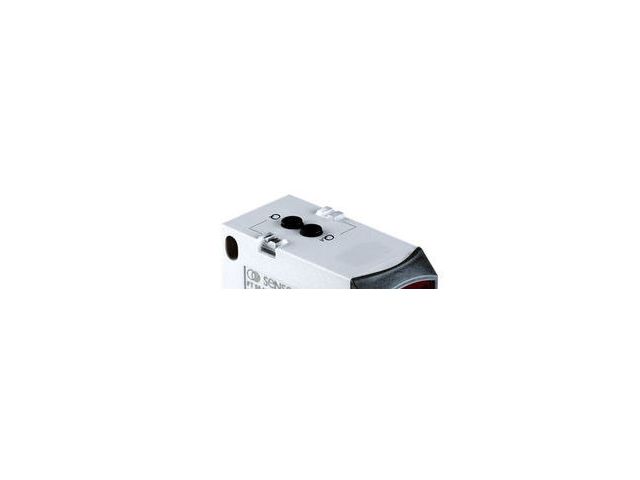

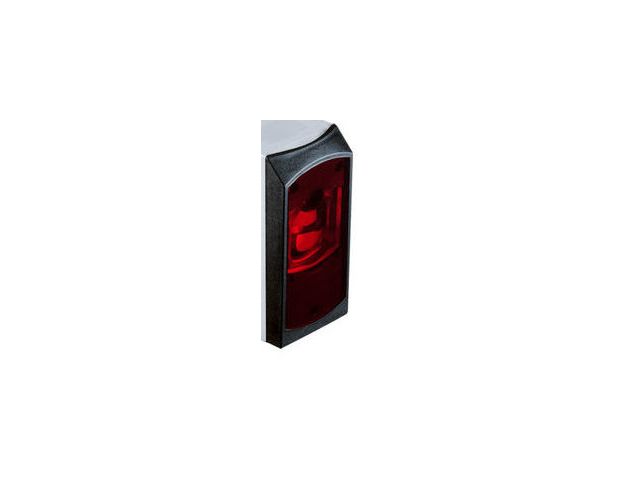

Distance sensor with a reflector for large distances | FR 55-RLAP-70-2PNSI-L8

Distance sensors

Vote

Ask for a quote Receive Documentation Contact the supplier

  • Sensor with large range for anticollision and positioning applications
  • High flexibility thanks to adjustable analogue characteristic (QA)
  • 4 distance positions with 2 switching outputs, adjustable via window function
  • Q1/Q2 switchable to Q1/Q1 as antivalent outputs
  • Compact design for an easy integration
  • Easy installation and operation via external teach-in
  • Clearly visible laser light spot (laser class 1) for a precise alignment and full eye safety
  • Laser can be switched off via control line
  • 4...20 mA
- Type: F 55
- Typical resolution: 8 μA
- Light Type: Laser, red
- Range: 70000 mm
- Connection type: Plug M12 8-pin
- Switching output: Analogue
- Supply voltage: 18 - 30 V DC

Download the complete technical features
