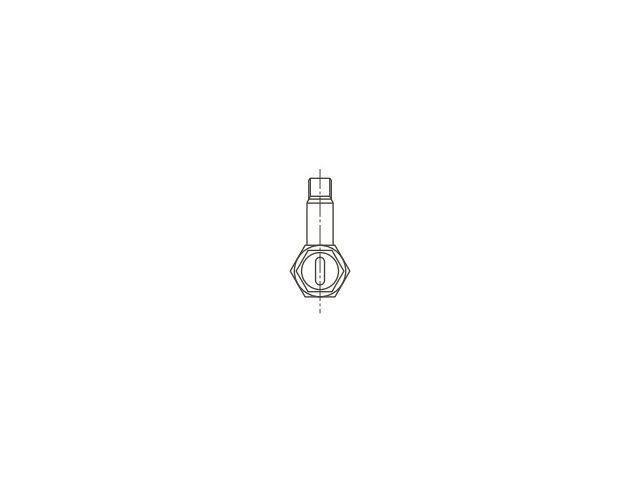

DOVEA series – Flat spray semi-fine nozzle IKEUCHI EUROPE B.V.

DOVEA series – Flat spray semi-fine nozzle

Vote

Ask for a quote Receive Documentation Contact the supplier


Features
  • Liquid pressure type under the liquid pressures of 0.07–0.7 MPa (ca. 0.7 bar – 7 bar).
  • Large turn-down ratio with minimal variation in spray angle.
  • Uniform distribution suitable for multiple-nozzle arrangements.
  • Large free passage diameter minimizes clogging.
  • Standard spray angle of 55°, 70°, 95°, or 110°.


Applications
  • Cooling: Gas, steel plates, steel pieces, moldings, etc.
  • Steel making process: Cooling continuous casted steel (slab, bloom, billet, beam blank, etc.)
  • Rolling mill process: Cooling roll in heat treatment

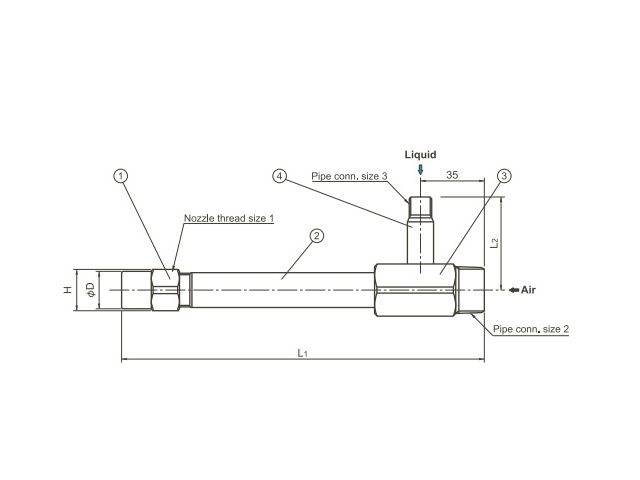

Pipe conn. size : on request Spray angle : applicable on request Spray capacity : on request Supply air type : Compressed air Liquid feeding system (recommended) : Liquid capacity Air consumption (recommended) : 5 times of largest water capacity Air pressure : on request Free passage diameter: 2.0 mm or larger (exception existing)
Download the complete technical features
