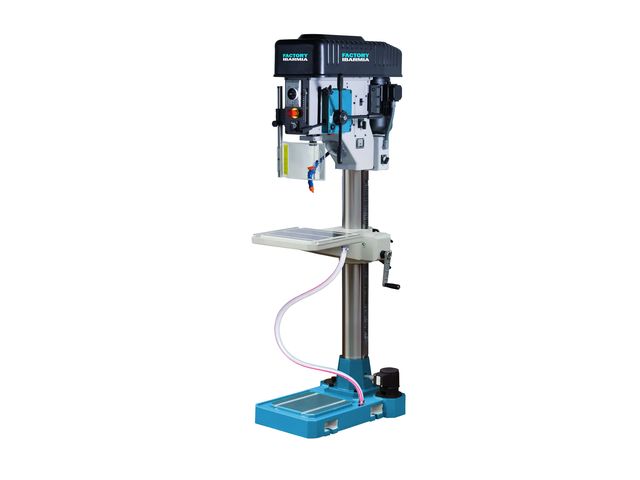

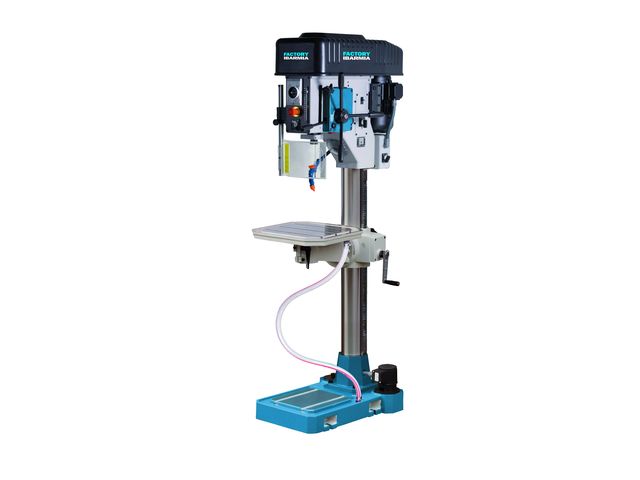

Drilling machine IBARMIA Factory IZ-40 ERLO GROUP

Drilling machine IBARMIA Factory IZ-40

Column drill

Vote

“ Excellent quality-price relationship supported by the company IBARMIA that is the world leader in manufacture of drilling and tapping machines since 1961. ”
Ask for a quote Receive Documentation Contact the supplier

STANDARD EQUIPMENT
Depth scale and adjustable depth stop
Automatic tool ejector
Low voltage electric equipment
Security microswitch on cover
Electronic inverter with digital rpm counter
Emergency  STOP push button
Spindle reversing switch
Electric equipment integrated on machine's head
Safety drill guard with microswitch
Table with "T" slots
"CE" mark

TECHNICAL CHARACTERISTICS:  Maximum drilling capacity on 60kg steel                                                                                Ø mm 40 Maximum drilling capacity on 200HB. Cast iron                                                                    Ø mm 45 Maximum tapping capacity on 60 kg. Stell                                                                                  mm M 30 Maximum tapping capacity on 200 HB. Cast iron                                                                      mm M 32 Morse Taper MT                                                                                                                                  Nr. 4 Drilling depth                                                                                                                                    mm 150 Feed Manual 2 Speed  Motor Power                                                                                                                      CV 1,8/3,2 Transmission                                                                                                                          Mechanical variator Nr.of speeds Variable  Speed range with motor 1500 rpm 50 HZ 3 PH                                                                        rpm 80 - 1.170 Table dimensions (W x L)                                                                                                             mm 400 x 420 Column diameter                                                                                                                           mm 125 Distance from spindle centre to column face                                                                            mm 300 Distance spindle - table                                                                                                                 mm Min.150/Max.950 Distance spindle - base                                                                                                                 mm 1.310 Net weight                                                                                                                                          kg 295
Gross weight with paking                                                                                                                kg                                                                                                                                                          345 Packing dimensions (length x width x height)                                                                             m3 1,52
