Electric captive reel - PKW-E

The lightweight
Features:
•Capacity from 250 kg up to 3.000 kg
•Spur gear and brake motor
•Single phase or three-phase motor
•Different speeds and rope capacities
•Protection class IP55 – 66, duty cycle 60% - 100%
•Low-maintenance with lifetime lubrication
•FEM classification M3 (1Bm)
•Documentation alternatively in German or English
•Test book and EC Declaration

Options:
•Rope and hook completely mounted, more rope outflow
•Grooved and longer drum, disengaging clutch
•Protective drum cover and special coatings
•ATEX and entertainment version

Description

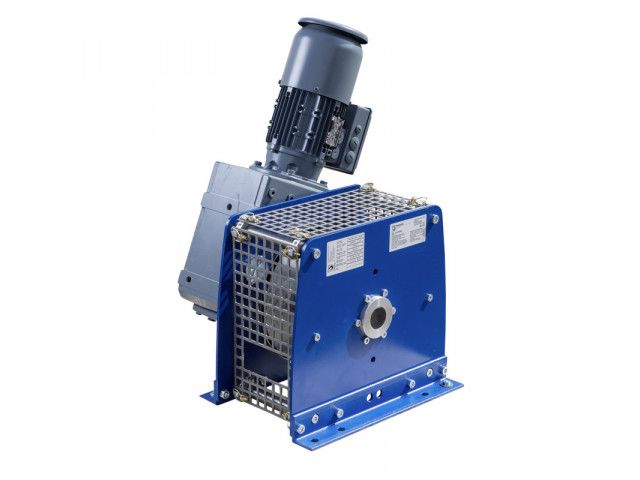

As a lightweight industrial cable winch, the PKW-E cable winch is the entry-level unit for the custom-built PLANETA solutions for towing, lifting and positioning loads weighing up to 3.000 kg. With two different drum diameters and a comprehensive range of equipment, it is also ideally suited for modification at a later date, i.e. to being adapted to suit different requirements. With many of its components in inventory, the production lead time for the PKW-E, even in special versions, is very short indeed.
