SOCIÉTÉ NOUVELLE SOCOPRESSES

Electric cylinders from 6 to 1 000 KN

Electric cylinders from 6 to 1 000 KN - SOCIÉTÉ NOUVELLE SOCOPRESSES

Electric cylinders from 6 to 1 000 KN - Electric cylinder

Electric cylinders from 6 to 1 000 KN - produit présenté par SOCIÉTÉ NOUVELLE SOCOPRESSES

Electric cylinders from 6 to 1 000 KN

Electric cylinder

“ - Plug & play integration in control cabinets - Optimized power consumption thanks to brushless motors - 100% customized cylinders (speed, stroke, force) ”

Ask for a quote

Presentation

Force: max: 1000 kN / min: 6 kN
Stroke: 200 mm / 300 mm, other on request
Motor power: 2 kW, 3 kW, 6 kW, 12 kW, 16 kW
Speed: max: 250 mm/s min: 0.1 mm/s

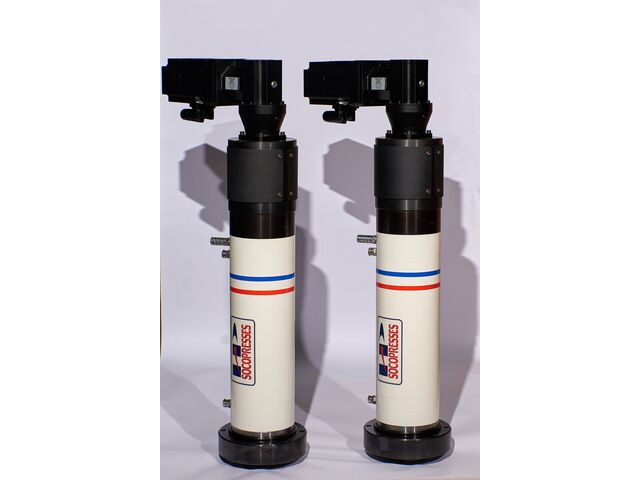

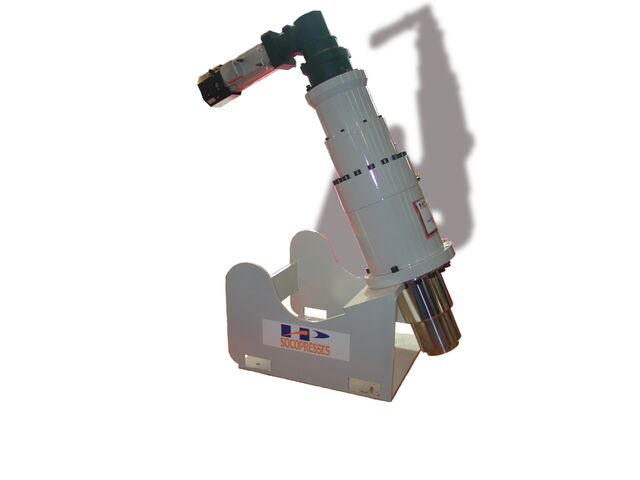

THE ELECTRIC CYLINDER: A HIGH-PERFORMANCE TOOL
Characterized by reinforced guidance, precision displacement, and freely adjustable speed and force parameters, the electric cylinder is an unrivalled tool. It simplifies your tooling by integrating optimally into various machines requiring specific effort.

EASY TO USE
With its exceptional design, the electric cylinder can be supplied in two ways:
- As a stand-alone unit with its own motorization;
- Integrated into a specifically automated mechanical assembly.

Users benefit from ease-of-use, with the ability to set every parameter (setpoints, speed, force) in the standard version, without the need for specific training. Numerous options are also available to meet specific requirements.

OPTIMUM MAINTAINABILITY
The proven reliability of the components integrated into the electric actuator guarantees exceptional longevity. Maintenance of this tool is reduced to a minimum, ensuring continuous, trouble-free use.

ELECTRIC CYLINDER DIMENSIONS

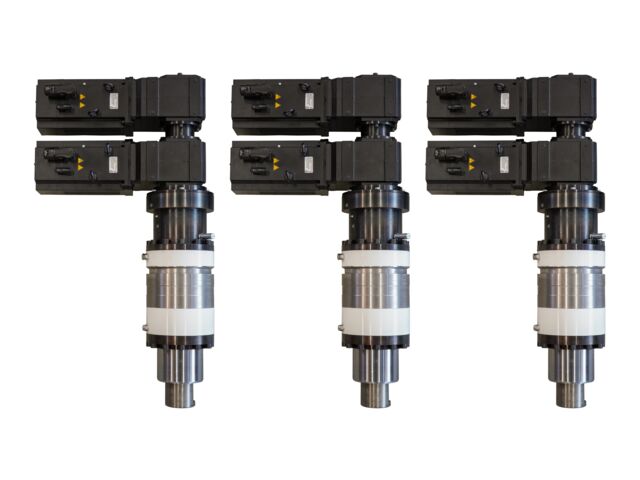

Motors can be mounted in a variety of ways to suit different configurations:
- with the axis at 90° to the cylinder
- With both axes together

Technical features

Type: electric Technology: guided piston rod Protection class: reinforced Applications: guidance Other features: precision, threaded Stroke: 200 mm, 300 mm (7.874 in, 11.811 in) Force : Max : 1000 kN Min: 6 kN Motor power: 2 kW, 3 kW, 6 kW, 12 kW, 18 kW (3 hp, 4 hp, 8 hp, 16 hp, 24 hp) Speed: Max: 250 mm/s Min: 0 mm/s

Usage scope

Pharmaceuticals Automotive General industry Civil aeronautics Defense
