Electric glass lift for glass patio roof | GLS340 / GLS520

Elevator

Vote

“ - No tool needed - 30 seconds to set-up. - Can be transported by van or estate car ”

Ask for a quote

Presentation

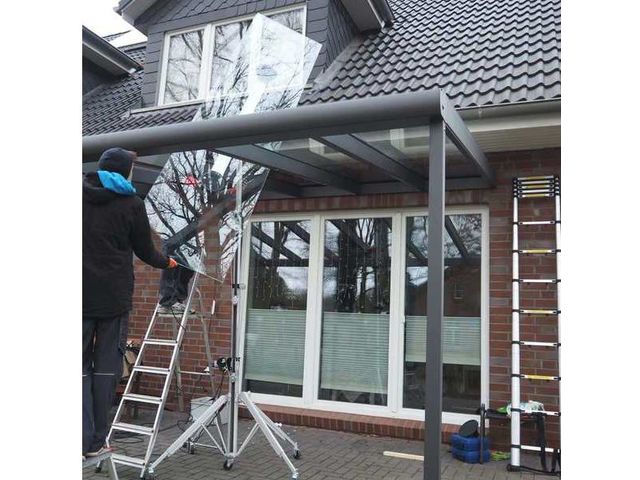

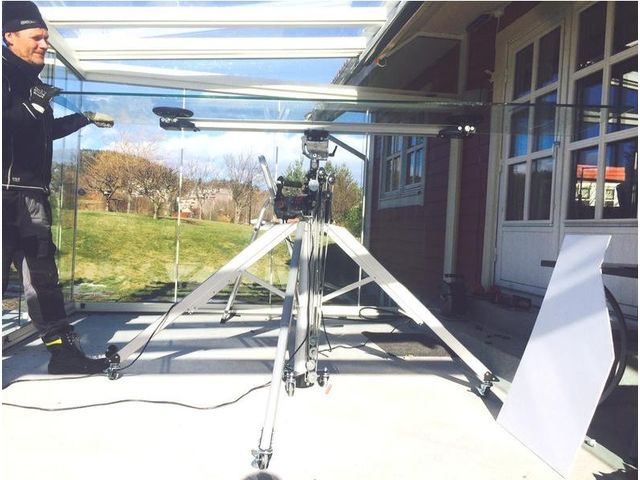

GLS 340 u. GLS 520 were developed at UPTER for the assembly of glasses for the glass patio roofs.
Mast made of sturdy aluminum, light and portable for immediate use.

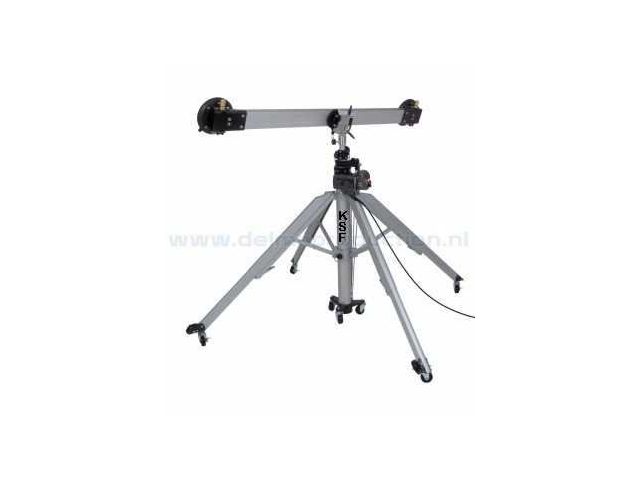

GLS consist of only two components: the lifting device and the glass holder.

Lifter

· Set up in seconds and without any tools
· The 4 supports with wheels can be adjusted variably.
That is why the glass lift is also used for bumps
· Easy leveling thanks to built-in leveling aid

Electric motor

· Voltage 230 V / 4 A - AC 50/60 Hz with adjustable lifting and lowering speeds.
Manual operation possible (crank for currentless operation is included)
· Automatic slip clutch
Emergency stop button: if the button is pressed, the glass lift stops immediately.

Glass holder made of aluminum with two hand pumps

· Articulated joints with enormous flexibility (adjustable up to 90 °)
· Suction lifter (TÜV approved) for VSG panes with built-in hand pump.
. Load capacity 70 kg at 3 m lifting height with CM 340 u. CM 520

Technical features

No need to use any tools for the operation It take only 30 seconds to complete machine set-up. Telescoping masts The overall stability is ensured by 4 feet equipped with locking wheels for use also on sloping ground A level ensure the proper set-up while adjusting the feet Can be transported by van or estate car Electric lifting motor 110 V or 230 V , remote control with variable speed switch. Manual operation is possible in case of power failure Automatic Overload clutch, to prevent over weight loading Emergency stop button: Pressing this button stops raising or lowering immediately
